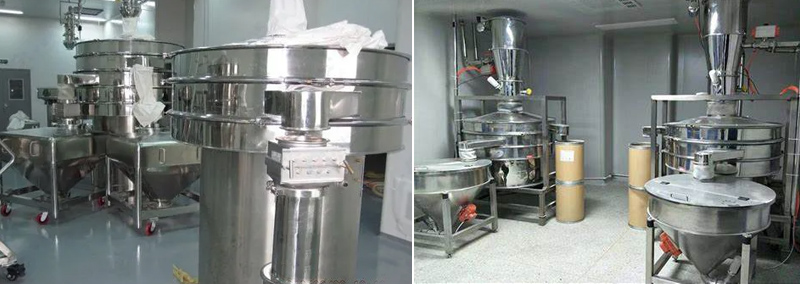

Application of food powder particle rotary vibrating sieve (customer case integration)

Customers' cases

Customer 1: The material is stevioside powder, the material itself is about 100 mesh, the specific gravity of the material is 0.29, the sieving accuracy is 40 mesh, and the processing capacity is 1000KG/h. A vibrating sieve is required.

Customer 2: sieveing rapeseed 200 kg per hour requires a small type rotary vibrating sieve for impurity removal I don’t know the size of the mesh, use it myself.

Customer 3: A rotary vibrating sieve is required for the part in contact with the material to be made of 304 material, which is used for sieving soybeans soaked in water, for cleaning, and filtering out the small stones and fine sand in the soybeans.

Customer 4: sieve starch, remove impurities, pass through 20-30 mesh sieve, output 420 kg/hour, continuous production 24 hours a day.

Customer 5: 400 Rotary Vibrating sieve The part in contact with the material is stainless steel 1 layer The purpose of sieveing is to separate the jujube mud from the jujube core.

Customer 6: For personal use, sieve pepper particles, choose 1-meter rotary vibrating sieve, and install 20 mesh, 30 mesh, and 60 mesh. The material has good fluidity.

The above are real cases of customers in the application of rotary vibrating sieve. It is not difficult to see that each user has different sieveing materials, mesh requirements, output requirements, and layer requirements.

The vibrating sieve is undoubtedly a non-standard product. After all, even if it is the same material, its use is different, and the required fineness or processing methods are different. Therefore, this article discusses the basic situation and special design of the rotary vibrating sieve based on the above six customer cases. introduce:

The basic situation of food rotary vibrating sieve

Layers: 1-5 layers can divide materials into 2-6 levels

Net cleaning: Silicone bouncing ball net cleaning device

Output: 100-3300kg/h (standard model)

Uses: single-layer filtration for impurity removal, multi-layer for grading

Mesh: 2-500 mesh (0.025mm-12.7mm)

Case correspondence of special design application of rotary vibrating sieve

Special design 1: dust-free feeding station or adding silo

Applicable situation: suitable for 24-hour mass production with feeding equipment assembly line, saving labor

Case correspondence: starch removal, continuous 24-hour production

Special design 2: add ultrasonic device

Applicable situation: suitable for 5 fine powder materials with fine material, light specific gravity and large output demand

Correspondence to the case: 1000kg of steviol glycosides per hour, the specific gravity of the material is 0.29

Special design 3: The diameter of the discharge port is adjusted proportionally

Applicable situation: It is suitable for the proportion of different fineness in the material is very different, so that the material is discharged more smoothly

Case correspondence: sieving of pepper particles, 50% above 20 mesh, 30% below 60 mesh

Special design 4: The contact part is made of stainless steel

Applicable situation: sieveing food materials has certain hygiene requirements but not high requirements or small budget

Correspondence to the case: impurity removal of soaked soybeans; separation of jujube pulp and jujube core

It is not difficult to see from the above real cases of customers that the food vibrating sieve is not only widely used, but also has a flexible form. Its design depends entirely on the needs of users and the actual sieveing of materials. Therefore, if you want to choose a suitable and good one rotary vibrating sieve to use, bringing your own materials and sieveing needs to consult the staff directly, is undoubtedly the most direct and easy-to-use choice~
