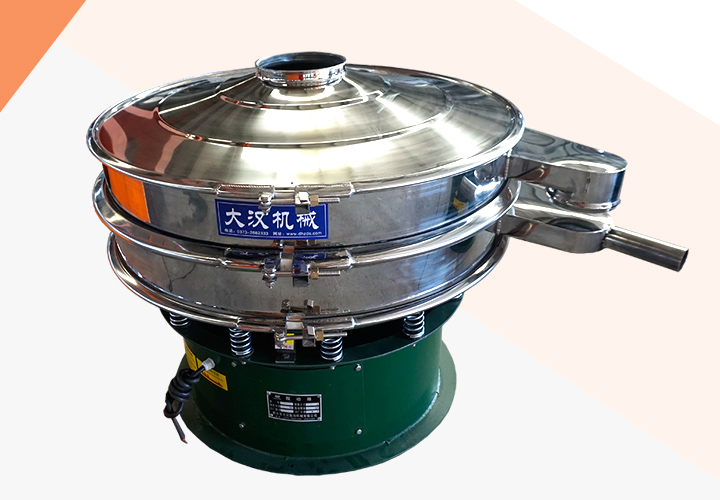

Gas Protection Vibro Sifter

Introduction of gas protection vibro sifter

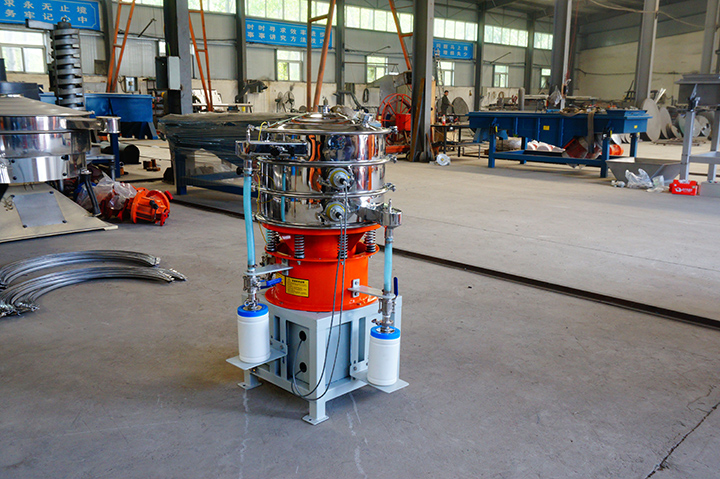

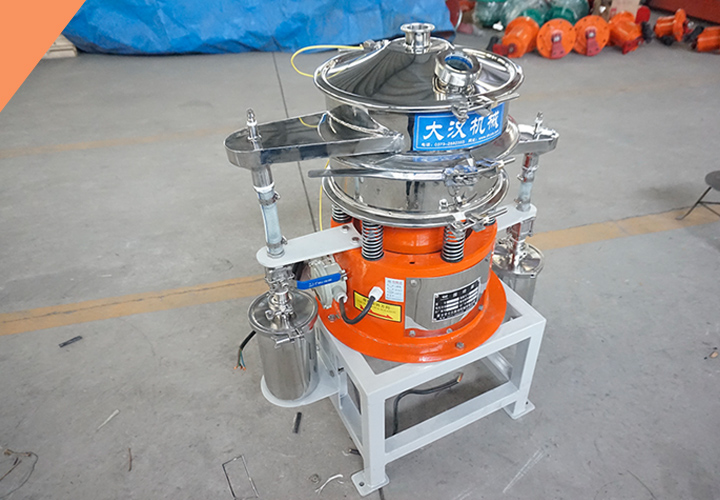

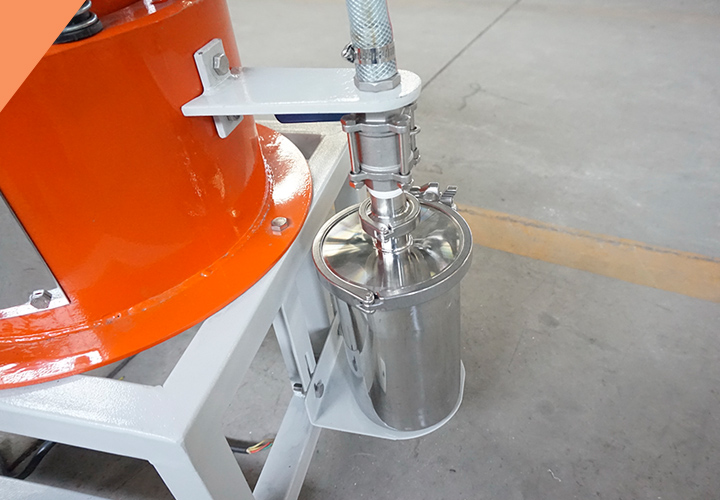

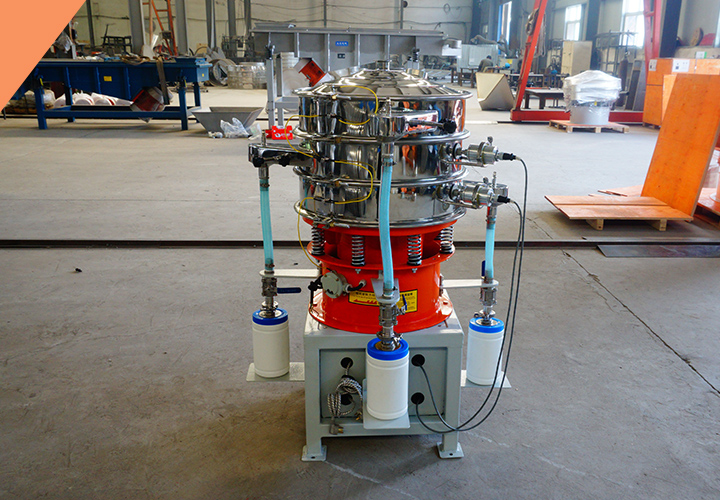

Gas Protection Vibro Sifter is equipped with a gas protection device on the basis of vibro sifter, made of 304 stainless steel, gas protection hose, anti-static device, etc., suitable for screening metal powder, graphite powder, 3D printing materials, etc., which cannot be in contact with oxygen Of materials.

Benefits of gas protection vibro sifter

1. Install a gas protection device on the basis of the vibro sifter to prevent the material from contacting the air.

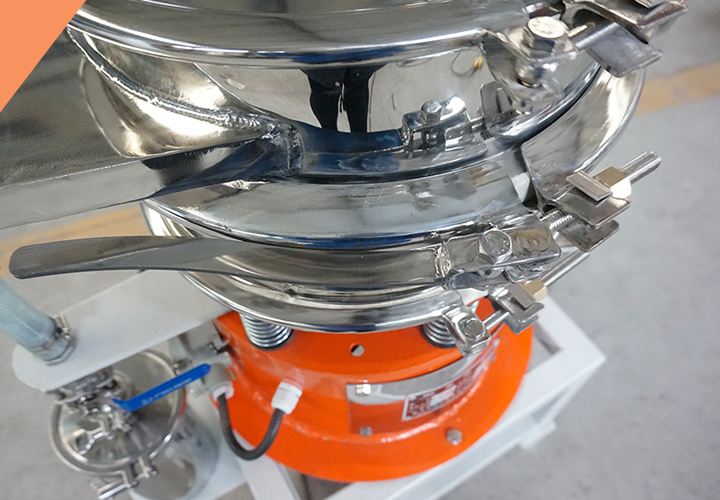

2. The tight structure can effectively ensure that the materials can be screened in a fully enclosed system.

3. The output can reach 100KG-3300KG per hour, and different models can meet the various output requirements of materials from small to large.

4. The sieving is fine to 500 mesh or 0.028mm, the mesh is not easy to be blocked, and the powder is not easy to fly.

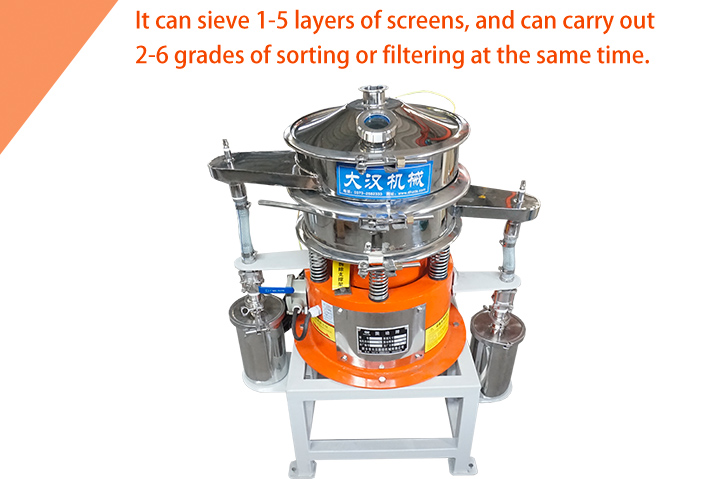

5. It can sieve 1-5 layers of screens, and can carry out 2-6 grades of sorting or filtering at the same time.

Working principle of gas protection vibro sifter

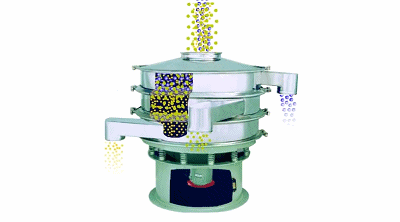

Gas protection vibro sifter is installed on the basis of vibro sifter with a gas protection device. The part contacting the material is made of 304 material. The vertical vibration motor is used as the excitation source. The upper and lower ends of the motor are equipped with eccentric weights. The rotating motion of the motor is transformed into a horizontal, vertical, and inclined three-dimensional motion, and then this motion is transmitted to the screen surface.

Technical parameters of gas protection vibro sifter

Model	Diameter mm	Screen area m	Screen size（mesh）	Feeding granularity mm
DH-600	Φ600	0.24	2-500	<Φ10
DH-800	Φ800	0.45	2-500	<Φ15
DH-1000	Φ1000	0.67	2-500	<Φ20
DH-1200	Φ1200	1.0	2-500	<Φ30
DH-1500	Φ1500	1.6	2-500	<Φ30
DH-1800	Φ1800	2.43	2-500	<Φ30
DH-2000	Φ2000	3.01	2-500	<Φ30

Application of gas protection vibro sifter

Chemical industry: resin, paint, industrial medicine, cosmetics, paint, Chinese medicine powder, etc.

Food industry: powdered sugar, starch, salt, rice flour, milk powder, soy milk, egg powder, soy sauce, fruit juice, etc.

Metals, metallurgy and mining: aluminum powder, lead powder, copper powder, ore, alloy powder, welding rod powder, manganese dioxide, electrolytic copper powder, electromagnetic materials, grinding powder, refractory materials, kaolin, lime, alumina, heavy carbon acid Calcium, quartz sand, etc.
