Pharmaceutical Vibro Sifter
Callback
| Diameter: 400mm-2000mm | Capacity: 100-5,000 kg/h |
| Screen size: | 36 microns - 25 mm |
Closed system eliminates airborne dust problems
Mirror polished with 0.1-0.2 RA surface finish inside and outside
All welded joints are seamless, ensuring no material deposits and zero possibility of material contamination

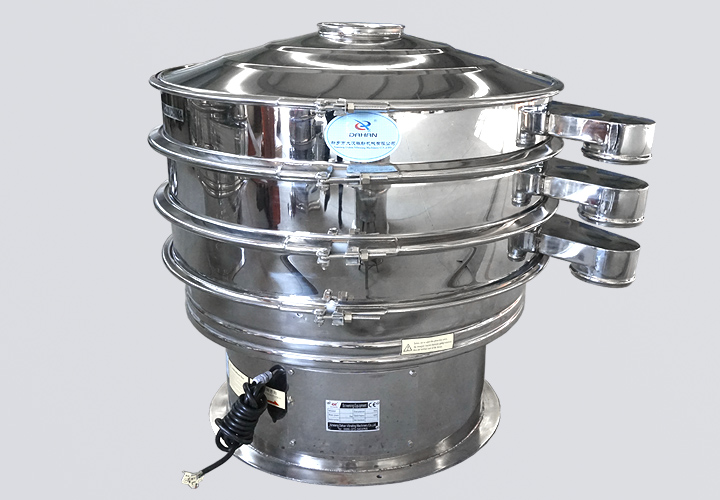

Introduction of pharmaceutical vibro sifter
Pharmaceutical vibro sifter is dedicated to screening, sieving, grading for solid-liquid separation in the pharmaceutical industry. It is separated from the combination of liquid materials, and can be used for screening and removing impurities of acidic, alkaline, oily and other medical drugs such as pharmaceutical intermediates, medical excipients, traditional Chinese medicine powder, traditional Chinese medicine liquid, western medicine powder, and western medicine liquid. The equipment complies with the requirements for pharmaceutical equipment in the "Good Manufacturing Practice for Pharmaceutical Products" revised in 2010.
The whole machine is made of polished 304/316L stainless steel. The inside and outside of the screen are polished. The bouncing balls and seals are made of non-toxic and non-polluting silicone material. It is designed and produced in strict accordance with the hygienic standards of the pharmaceutical industry. The screening accuracy is high. Safe and hygienic, it is suitable for screening and filtering various medical materials, fine powder, micro powder, dry and wet materials, etc.
Application of pharmaceutical vibro sifter
Pharmaceutical vibro sifter is often used for impurity removal of raw materials, grading of oral granules, powder removal of tablets, screening of pills, etc. Its application scenarios mainly include:

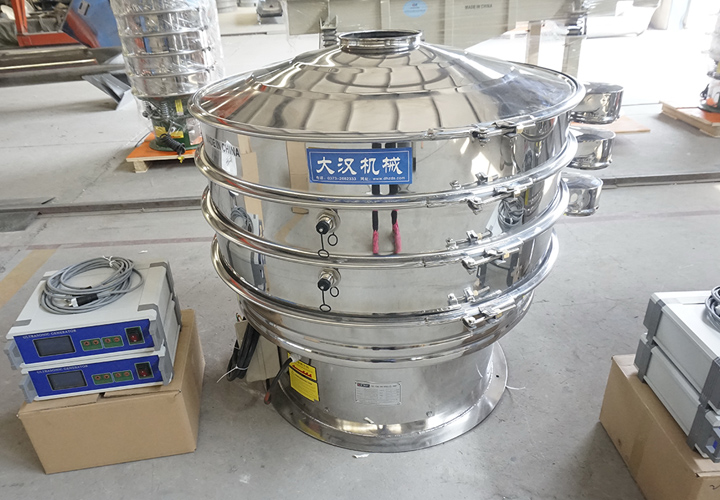

1. Pharmaceutical powder: During the screening process of pharmaceutical powder, there are many problems such as excessive fiber, high viscosity, static electricity, and light specific gravity, which will lead to low screening throughput, weak continuous work, inconvenient cleaning, and low production efficiency. The ultrasonic deblinding system is adopted to effectively solve the above problems and reduce the network blocking phenomenon. For materials with light specific gravity and good adsorption, it can improve production efficiency, improve screening accuracy, greatly reduce labor intensity, and reduce waste of finished materials.
2. Drug granules: Generally, the fineness of Chinese and Western medicine granules should be able to pass through a 10-50 mesh sieve, but the fine particles that cannot pass through a 10-mesh sieve and a 65-mesh sieve should not exceed 8%.
3. Medicinal extract: After the liquid is roughly filtered from the storage tank, it enters the vibro sifter, and the smallest filter screen can pass through 625 mesh (20 microns). The machine itself has an automatic slag discharge function, which can be used continuously to eliminate screen blockage and achieve continuity. At the same time, it can improve the recovery rate and reduce the labor intensity of workers. In the pure settling process, if not used, the effective liquid will be lost with the residue. After use, the finished slurry in the slurry can be effectively recovered, and the waste residue treatment is drier and less polluted.
Sieving process of pharmaceutical vibro sifter

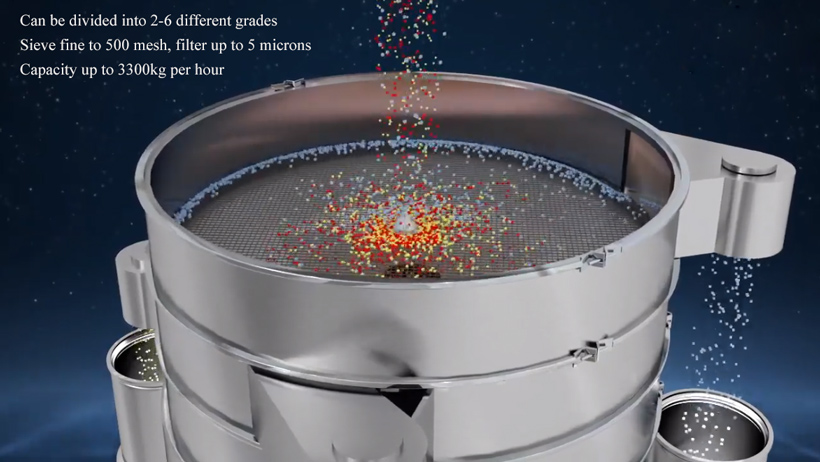

The main purpose of the pharmaceutical vibro sifter is to perform grading and impurity screening. The vibro sifter sieves layer by layer through screens of different meshes. The material (coarse material) with hole size stays on the screen surface and is discharged from the discharge port to achieve effective grading and screening of pharmaceutical products. Coupled with the vibration force of the vibration motor, it effectively solves various screening problems encountered in the biopharmaceutical process. question.
Featured videos
Benefits of pharmaceutical vibro sifter
1. It is suitable for sieving from 36 microns to 25 mm, and permits a production volume of 100 to 25,000 kg/h, depending on the product, the mesh opening size and the feed flow to the machine.
2. The Pharmaceutical vibro sifter is made of SS 304 or 316L stainless steel, machine mirror polished, the inner and outer surface finish is 0.1-0.2 RA, easy to clean design, no gaps, in line with pharmaceutical-grade hygiene standards.
3. All rubber accessories must also meet the pharmaceutical-grade hygiene standards (silica gel), and the screening equipment required by the pharmaceutical industry must pass the relevant production standards.
4. Continuous filtration for up to 5 stages of product separation in just 1 operation, available in a variety of sizes for smaller and larger scale operations from Ø400 to Ø2000.

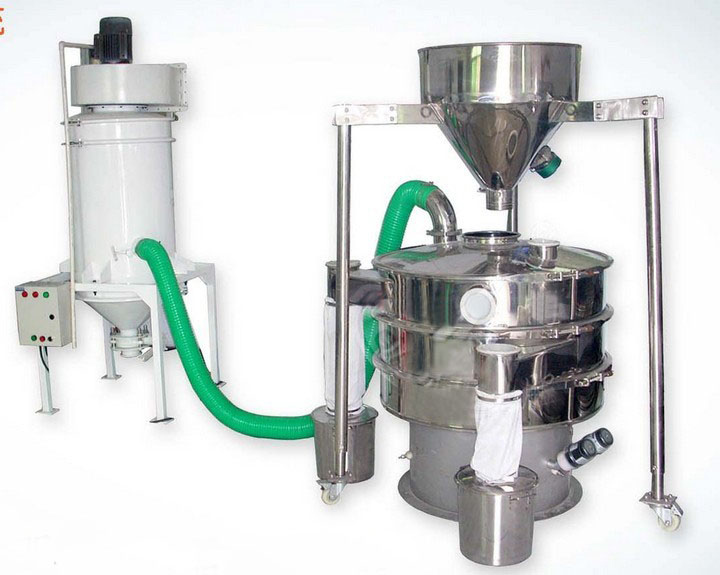

5. The sealing system eliminates dust problems in the air and protects the health and safety of operators.
Comparative analysis of pharmaceutical vibro sifter and manual sieving
| Compare Items | Pharmaceutical Vibro Sifter | Manual Screening |
| Capacity | A single output of 350 kg / hour | Manual screening 100kg/hour per person |
| Features | It can work continuously for 24 hours to ensure that there will be no pollution, hair and other debris mixed with raw materials | Manual screening does not meet the hygiene standards of the pharmaceutical industry, there is no labor protection, and continuous work for more than 1 hour can easily cause workers to be overworked, production problems or even accidents. |
| Cost | Machine unmanned screening, can be used for a long time | A granulator can produce 350 kilograms per hour, 4 workers are required for manual screening, the average daily wage is US$31 per person, and the cost of employment: US$31 * 4 people * 300 days = US$37,200 |
| Effectiveness | Use pharmaceutical vibro sifter to screen materials with more uniform particle size and high precision | Manual screening accuracy is not up to standard, unstable |
| Health standard | Conform | Incompatible |

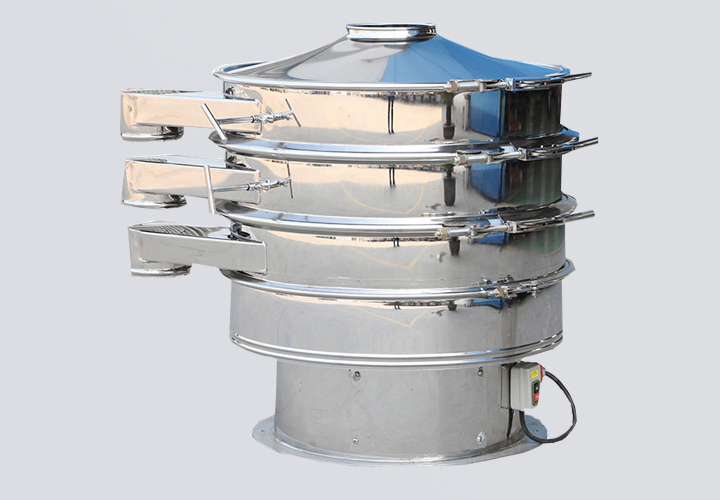

Technical parameters of pharmaceutical vibro sifter
| Model | Diameter (mm) |
Feeding Size (mm) |
Frequency (RPM) |
Layers | Power (kw) |
Capacity (kg/h） |
| DH-400 | 400 | <10 | <1500 | 1-5 | 0.18 | 100 |
| DH-600 | 600 | 0.25 | 200 | |||
| DH-800 | 800 | 0.55 | 500 | |||
| DH-1000 | 1000 | 0.75 | 800 | |||
| DH-1200 | 1200 | 1.1 | 1200 | |||
| DH-1500 | 1500 | 1.5 | 1800 | |||
| DH-1800 | 1800 | 2.2 | 2000 |

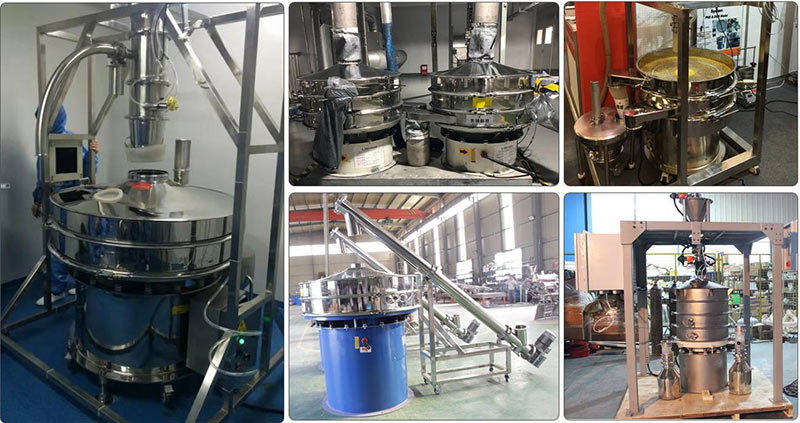

Related case
| Materials | Proportion | Mesh | Model | Processing Method | Capacity (kg/hr IT/hr) |
| Pharmaceutical Granules | 0.7 | 20/60 | DH-800-2S | Wet | 800㎏ |
| medicinal extract | 1 | 20 | DH-800-1S | Drr | 2000IT |
| pesticide | 80/150 | DH-1000-1S | Wet | 1400㎏ | |
| Healthy Food | 1.2 | 40/80 | DH-1000-2S | Wet | 2000㎏ |

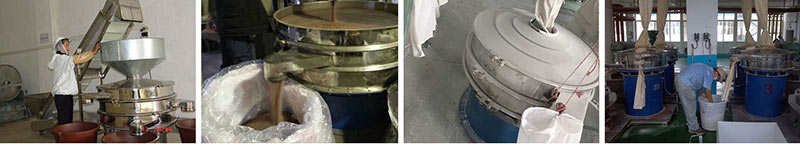

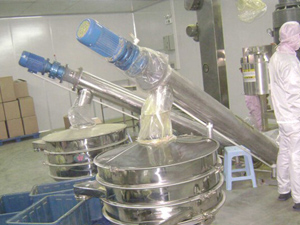

Related Case Studies

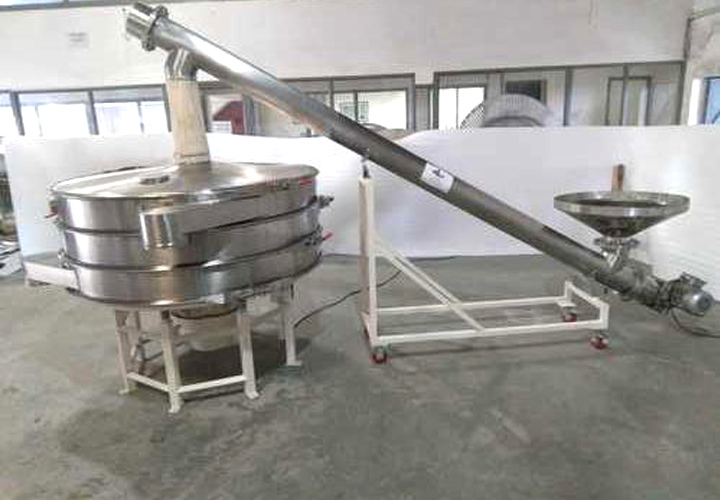

Pharmaceutical vibro sifter is used in applications such as pre- and post-mixing screening of pharmaceutical powders, post-granulation grading and tablet dusting, let our team help you assess your needs and choose the best pharmaceutical sieving and screening machine for your application.
If you are interested in learning more about how our professional hygienic pharmaceutical vibro sifter can help you protect your products from contamination, please contact us for assistance from engineers experienced in pharmaceutical equipment.
-

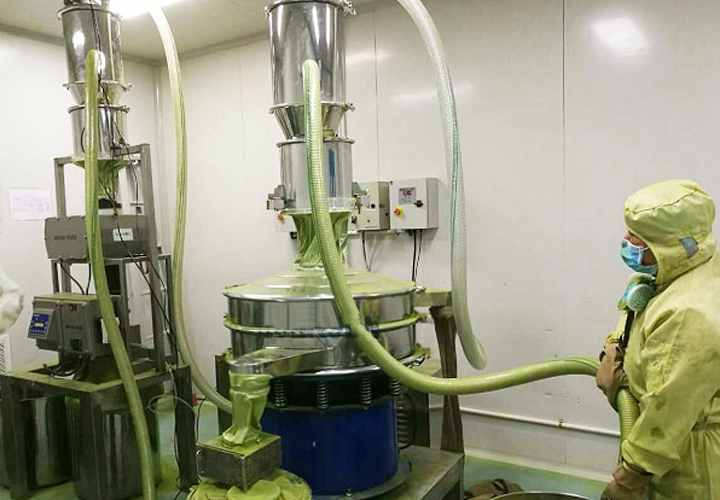

Sieving Pharmaceutical Powder
The medicinal powder is generally made of Chinese medicinal materials such as Panax notoginseng, ginseng, Salvia, Ganoderma lucidum, licorice, Liushen, rhubarb, Baiji, Xiyangshen, Polygonatum, spirulina, pearls and other Chinese medicinal materials after grinding or jet pulverization into traditional Chinese medicine powder, single powder or compound powder (mixed ) After sieving, the main purpose is to remove impurities and remove large particles.
-
Sieving Traditional Chinese Medicine Raw Materials
All raw materials for the production of formula granules are high-quality raw materials, which are purified and sorted by pharmaceutical vibro sifter to remove impurities to ensure the quality of traditional Chinese medicine raw materials. Or large particles with additional ingredients, after sieving, enter the silo for granulation to solve the phenomenon that the size of fine powder and granulation are inconsistent during the granulation process.
-
Various pill grading

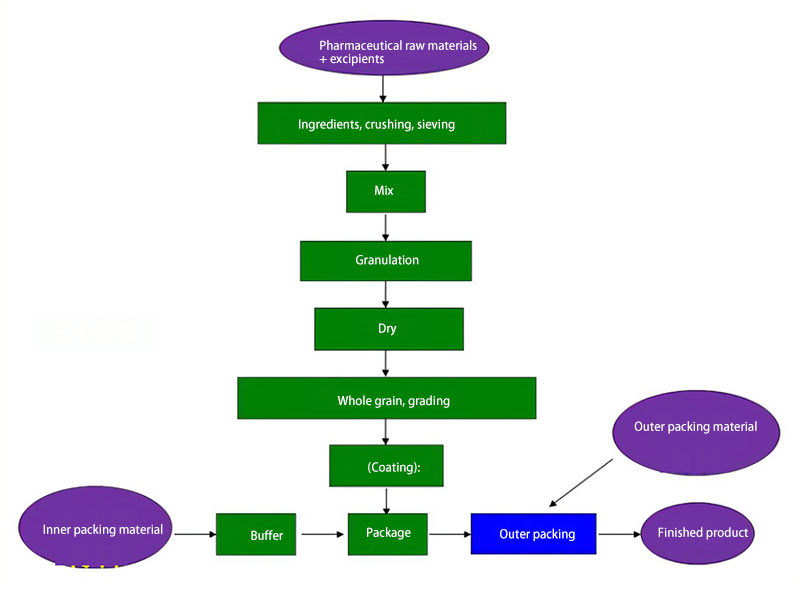

Traditional Chinese medicine pills are the traditional dosage form of traditional Chinese medicine preparations. In the production process, Chinese medicinal materials are generally made by crushing, sieving, sterilizing, batching, mixing, lumping, pill making, drying, packaging and other processes. The higher it is, the dried pills need to be sieved again, evenly classified, the packaged products have the same size, and the price is higher.

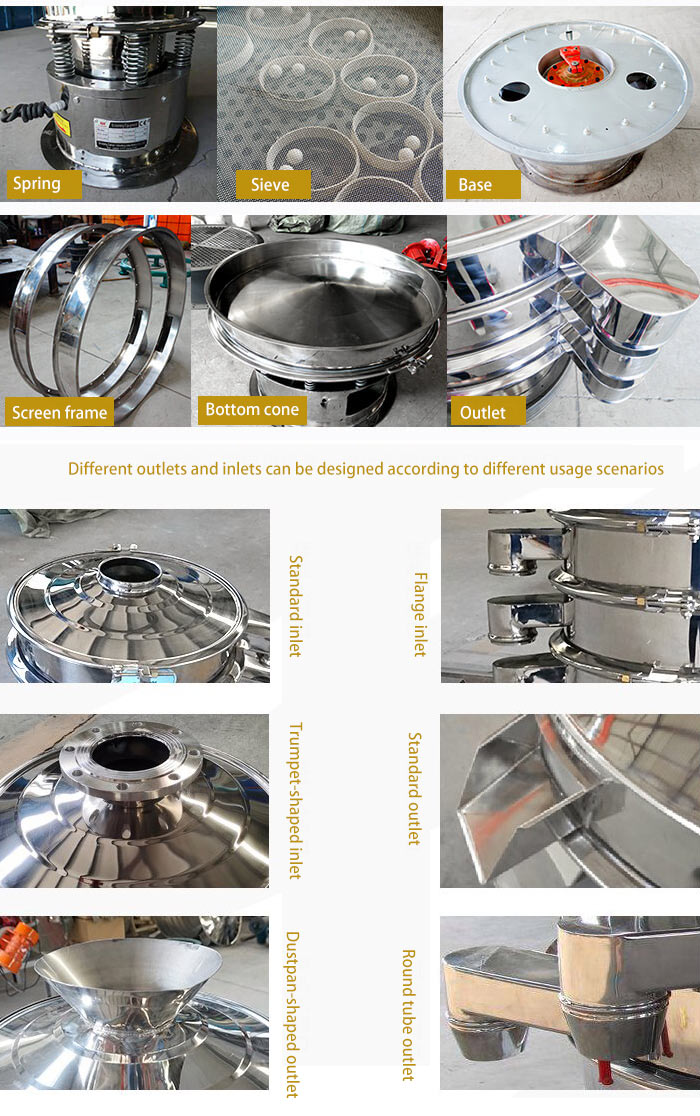

Important things about pharmaceutical vibro sifter
In a word, word, from traditional Chinese medicine to western medicine, from raw material medicine to synthetic medicine, from the selection of medicinal materials to the molding of medicines, this series of processes cannot do without the key role of the vibrating screen. In order to ensure that the pharmaceutical industry can use it with confidence, the Dahan produced The pharmaceutical vibro sifter strictly follows the national GMP standard, and the pharmaceutical vibro sifter produced by it has the following characteristics:
1. In terms of material: For medicines, safety and sterility is undoubtedly a rigid requirement. Therefore, as a pharmaceutical vibro sifter that is in close contact with pharmaceutical raw materials, the body material must be high-quality 304 stainless steel or 316 stainless steel. All are of national standard thickness (the thickness of the plate is 2.0mm), and need to be carefully polished to ensure that there are no barbs and black spots on the fuselage, so as to avoid contamination of pharmaceutical raw materials in dead corners of hygiene.
2. Accessories: Plastic accessories such as bouncing balls, retaining rings, and sealing rings for pharmaceutical-grade vibrating sieves can only be made of silica gel. Although this material is expensive, it has strong thermal stability, high adsorption performance, and chemical resistance. Stable properties and other characteristics, will not cause secondary pollution to medicines.
3. In terms of design details: the feeding port of the pharmaceutical-grade vibro sifter is designed with a large inclination angle. This design makes the whole machine have no dead corners that are difficult to clean, and the disinfection and sterilization can be easily solved; the equipment is equipped with a dust-proof cover on the feeding port to prevent It prevents dust from escaping and slurry splashing during the sieving process of powdery drugs or slurry drugs, and on the other hand, it also ensures the working environment inside the stainless steel vibrating screen to a certain extent.
