Liquid Solid Filter

Explore similar products |View all products in liquid solid filter

•

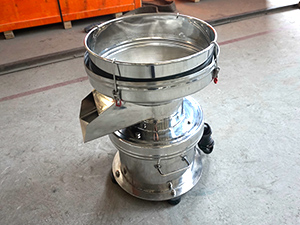

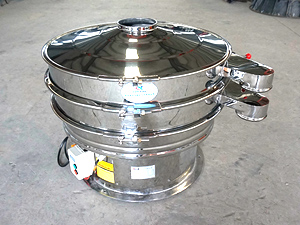

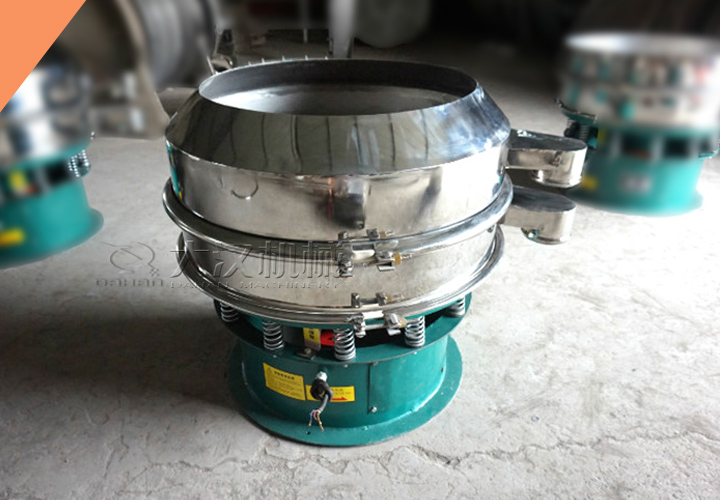

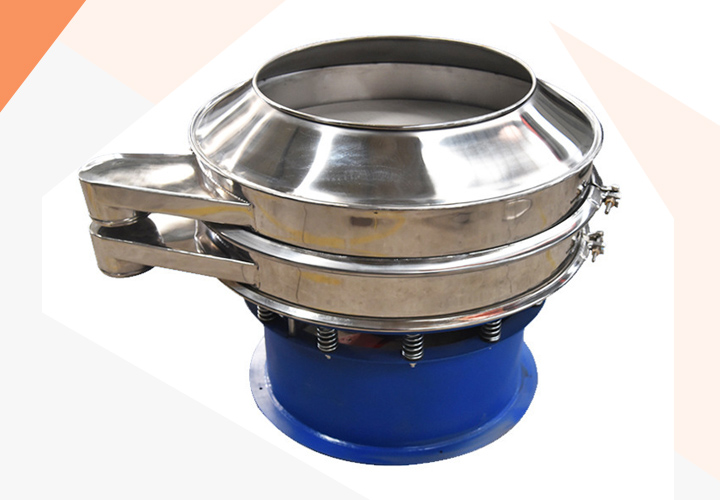

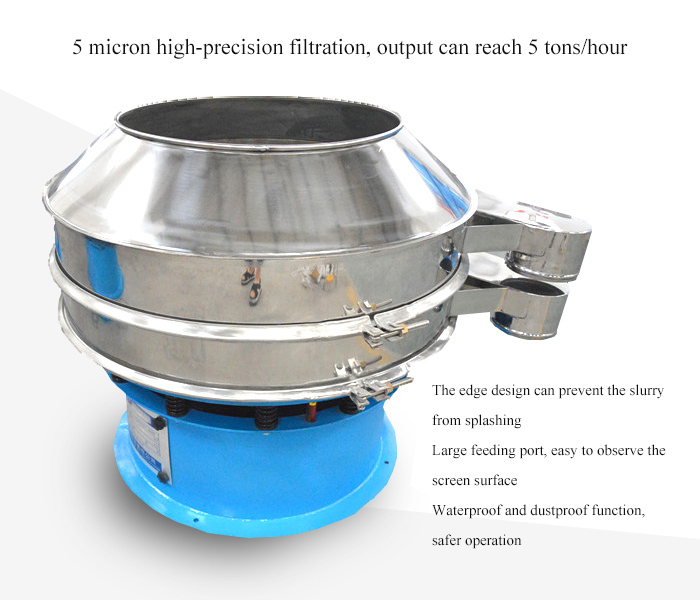

  Vibratory Separator

  Used for liquid materials with low viscosity and easy to filter

  Range: 5 μm

  Capacity: 5 tons/hour

•

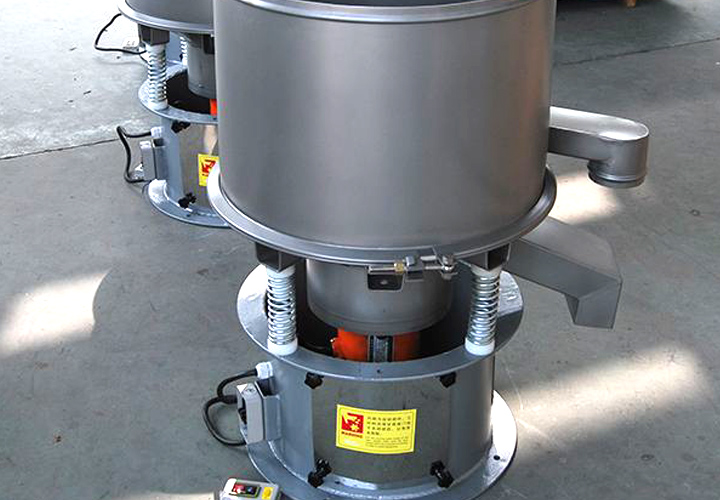

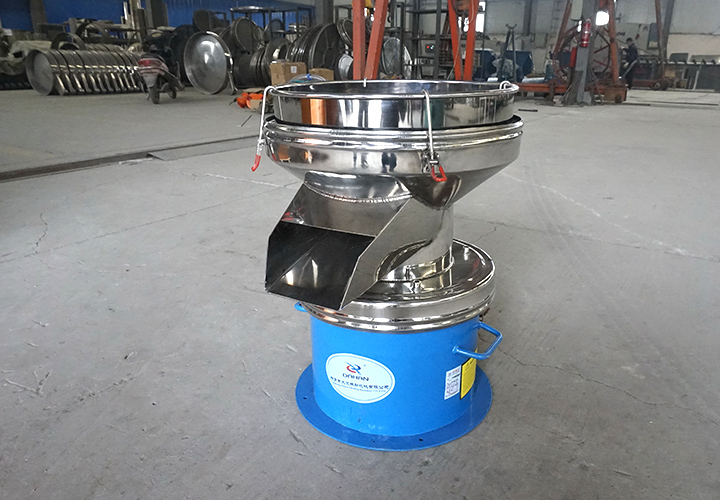

  450 Filter Sieve

  It is used for the filtration of small household liquids, and the impurities are disposed of by themselves

  Range: 0.038-3mm

  Capacity: 400-120kg/h

•

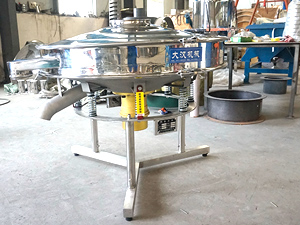

  High Frequency Vibrating Screen

  Suitable for filtering fine-grained, high-viscosity slurry materials

  Range: <30mm

  Capacity: 5-48t/h

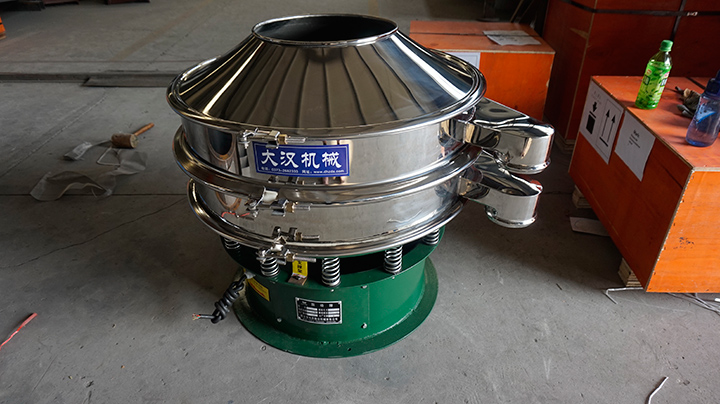

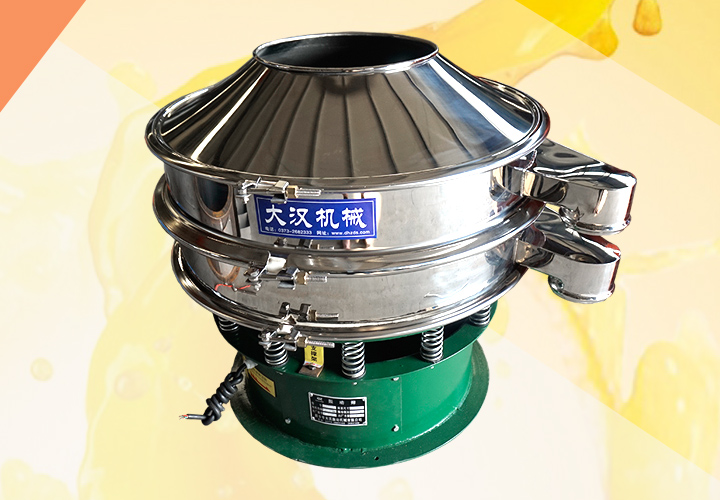

Introduction of liquid solid filter

Liquid solid filters can effectively filter aqueous applications as well as high viscosity materials, eliminate and suspend unwanted particles present in materials, remove solids from liquid slurries and recover valuable materials from waste streams for repeated use, available in batch and continuous separation, thereby improving the overall efficiency of the manufacturing process. Throughput up to 100,000 l/h.

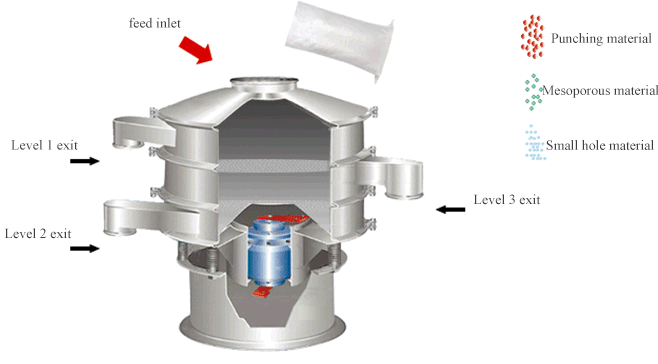

Working principle of liquid solid filter

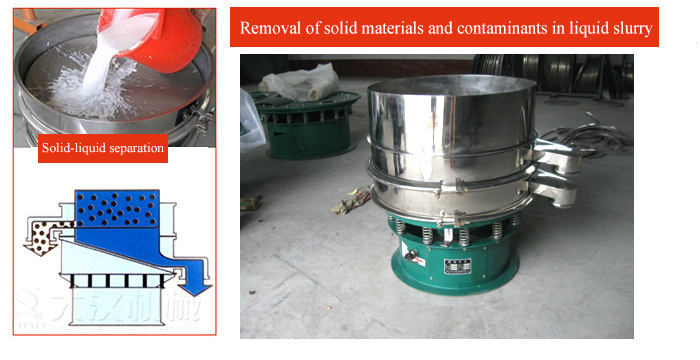

As the slurry passes through the liquid solid filters, the screen prevents the solids from draining with the liquid, resulting in two distinctly separated materials. Mechanical force then allows the remaining liquid to drain properly from the suspended solids, ensuring that no product is wasted.

Application of liquid solid filter

Chemical industry: paint, ink, color paste, paint, latex paint, aluminum powder paste.

Food industry: starch, soy milk, fruit juice, beverages, milk products, condiments.

Other industries: mud, pulp, waste liquid, Chinese and Western medicine liquid, etc.

Materials	Proportion	Mesh	Model	Processing Method	Capacity (kg/hr IT/hr)
Yeast	0.5	32	DH-1000-1S	Wet	8000 IT
Soy sauce	1	100	DH-1200-1S		6500 IT
Pineapple juice	1	100	DH-1000-1S		3000㎏
Orange juice	1	5.3㎜	DH-1000-2S		2000㎏
Medicine extract	1	20	DH-800-1S		2000IT
Waste water	1-1.3	60	DH-1000-1S		15000IT
Waste oil	0.9	100	DH-1000-1S		3800IT
Mud	1.1	250	DH-1000-1S		3200㎏

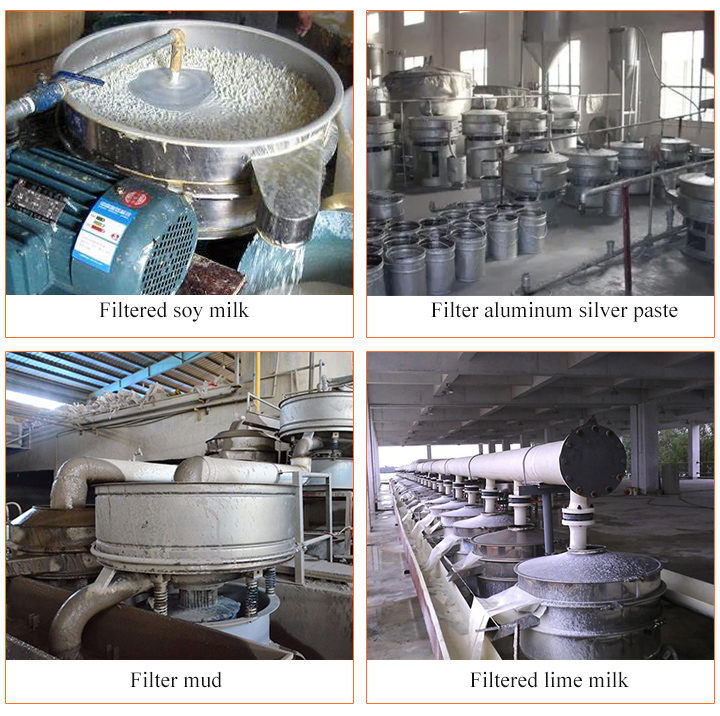

Featured videos

Filtered soy milk

Filter mud

Benefits of liquid solid filter

1. It can screen particles up to 25µ, and provide up to 5 levels of gradation in one operation.

2. The motor adopts a four-stage motor, the motor speed is 1440r/min, the motor is waterproof, and the fully enclosed structure is adopted to prevent liquid splashing and safer operation.

3. It can be used for batch and continuous separation, thereby improving the overall efficiency of the production process, with a processing capacity of up to 100,000 L/hour.

4. The oversized particles are discharged by rotating the screening material 360° around the periphery of the screen. Because the oversized particles of the screening material will not be deposited on the periphery of the screen, the discharge capacity of the machine is greatly improved.

5. With self-cleaning and de-blocking mechanism, it can work for a long time without any interruption, and provide the best quality finished products.

Technical parameters of liquid solid filter

Model	Diameter (mm)	Feeding Size (mm)	Frequency (RPM)	Layers	Power (kw)	Capacity (kg/h）
DH-400	400	<10	<1500	1-5	0.18	100
DH-600	600				0.25	200
DH-800	800				0.55	500
DH-1000	1000				0.75	800
DH-1200	1200				1.1	1200
DH-1500	1500				1.5	1800
DH-1800	1800				2.2	2000

Related cases

1. Filter fruit and vegetable juice

Purpose of use: In order to ensure the consistency of the amount of pulp in each bottle of fruit and vegetable juice, because the pulp added to the juice is added by weight, when the amount of juice contained in the pulp is inconsistent, the number of fruit pieces is definitely not the same.

2. Filter calcium hydroxide slurry

Purpose of use: To prevent small solid particles from clogging the gun head during spraying with the gun head, so filter out the 12-mesh coarse solid particles.

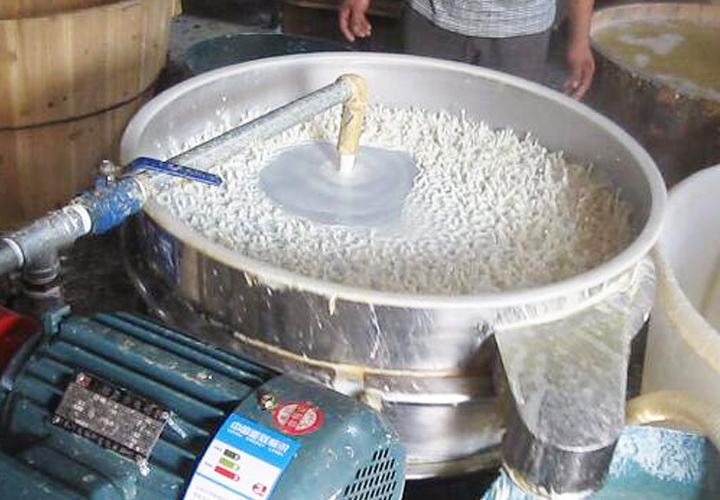

3. Filter soy milk

The purpose of use is to realize the separation of pulp and dregs, reduce the content of dregs in the soybean milk, improve the fineness of the soybean milk, and improve the taste.

Whether you are treating wash water, separating curds from whey or wishing to manage your sewage stream, we have a range of machines to meet your individual needs.
