Vibro Sifter

What is vibro sifter？

Vibro sifter can screen all kinds of materials, with screening specificity, high viscosity, fine-grained materials, fine powder, micro-powder, and dry and wet materials. The screen can be changed arbitrarily according to the standard of the material to be sieved and filtered, and the replacement of the screen is convenient and quick. Vibro sifter can be set to 1-5 layers, carbon steel or stainless steel can be customized according to customer requirements, and professional models can also be designed according to materials.

How does it works?

Vibro sifter is a new high precision fine powder screening machine. It uses vertical vibration motor as excitation source. This motor is equipped on both sides with an eccentric hammer which functions to transfer the rotation movement of motor to horizontal, vertical and inclined motions,and then transforms the motions to screen surface for sifting. The vibro sifter is widely applied in mediccal, food ,and other industries.

Technical parameters

Model	Diameter mm	Screen area m	Screen size（mesh）	Feeding granularity mm
DH-600	Φ600	0.24	2-500	<Φ10
DH-800	Φ800	0.45	2-500	<Φ15
DH-1000	Φ1000	0.67	2-500	<Φ20
DH-1200	Φ1200	1.0	2-500	<Φ30
DH-1500	Φ1500	1.6	2-500	<Φ30
DH-1800	Φ1800	2.43	2-500	<Φ30
DH-2000	Φ2000	3.01	2-500	<Φ30

TBenefits of our vibro sifter

1.The widest screening range

Vibro sifter can not only sieving granular/powder materials, but also liquid materials. The sieving is as small as 500 mesh (28 mm), and the filter is as small as 5 mm.

2. The mesh is not blocked

Dahan Machinery combined with years of vibro sifter production and manufacturing experience, summed up the appropriate screen height and the number of pinballs, so that the screened materials can be screened quickly and effectively, and the probability of screen blocking is minimized.

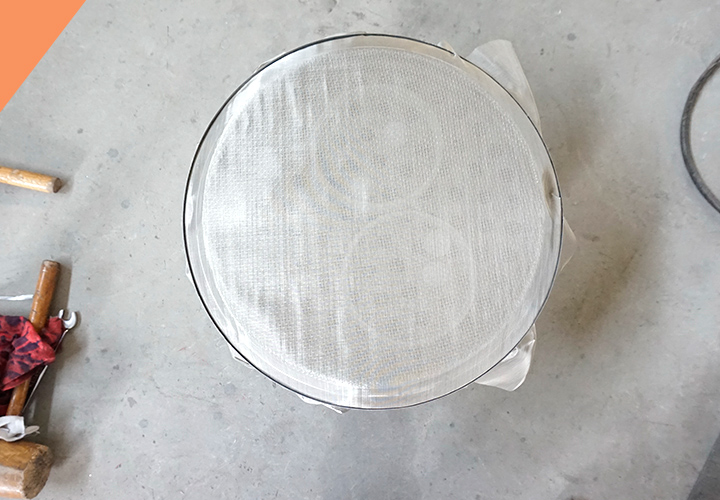

3. Diverse grid structure

According to the screening requirements of different materials, different grid forms are selected, and the time to replace the screen is reduced to 3 to 5 minutes, the screen life is longer, and the efficiency is higher.

4. Multi-layer classification

You can achieve 6 different gradation in a single operation as it can be structured up to 5 layers.

5. High degree of automation

Vibro sifter can be connected in series in the production line system for 24 hours production, and it can also be used with related supporting equipment such as vacuum feeder, dust-free feeding station, etc., to improve cleanliness, dust-free and environmental protection, reduce labor intensity, and improve work efficiency.

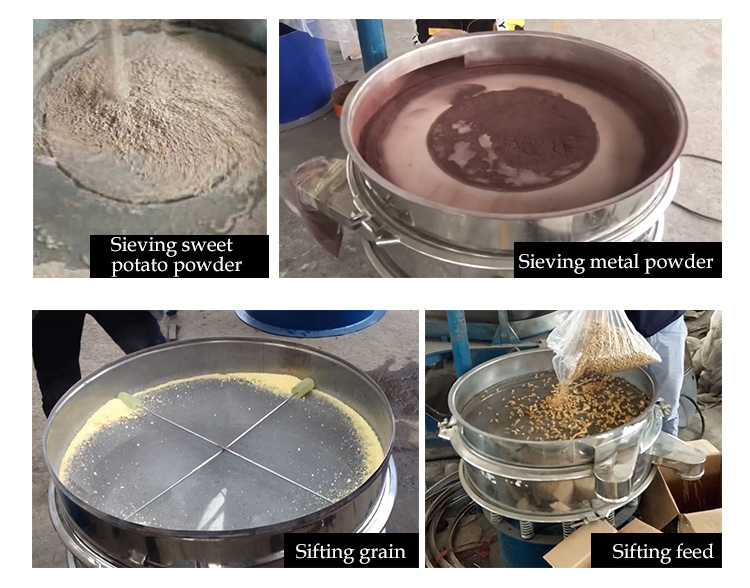

Main Uses of Vibro Sifter in Material Processing

Chemical industry: resin, paint, medicine, cosmetics, oil, powder, etc.

Food industry: sugar, monosodium glutamate, salt, fruit juice, starch, milk powder, food, soy milk, egg powder, rice, soybeans, fish meal, pineapple juice, etc.

Metals and metallurgical mines: aluminum powder, lead powder, copper powder, ore, alloy powder, electrode powder, abrasive powder, refractory materials, kaolin, lime, alumina, quartz sand, etc.
