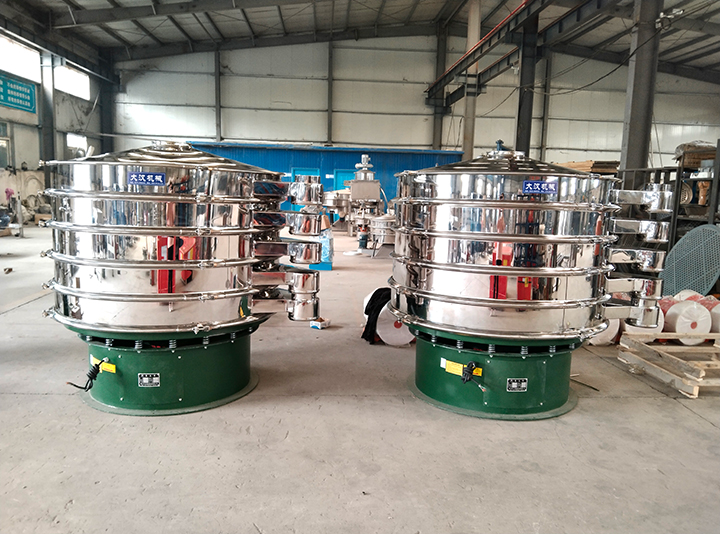

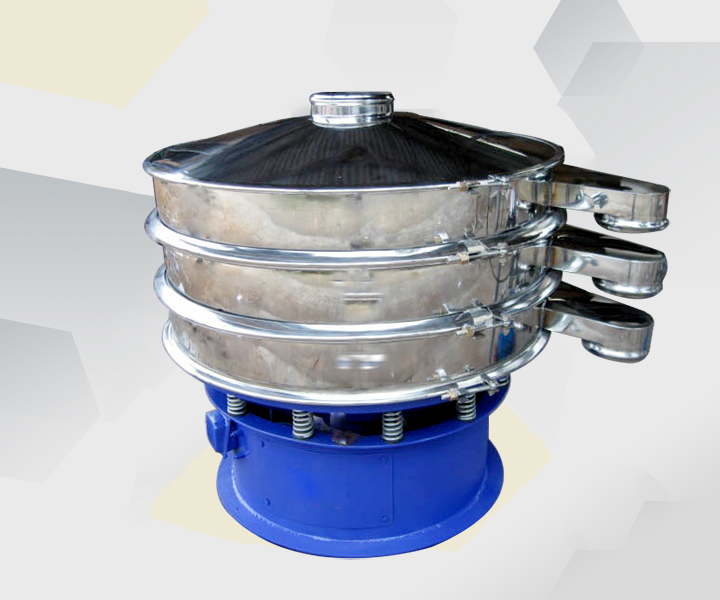

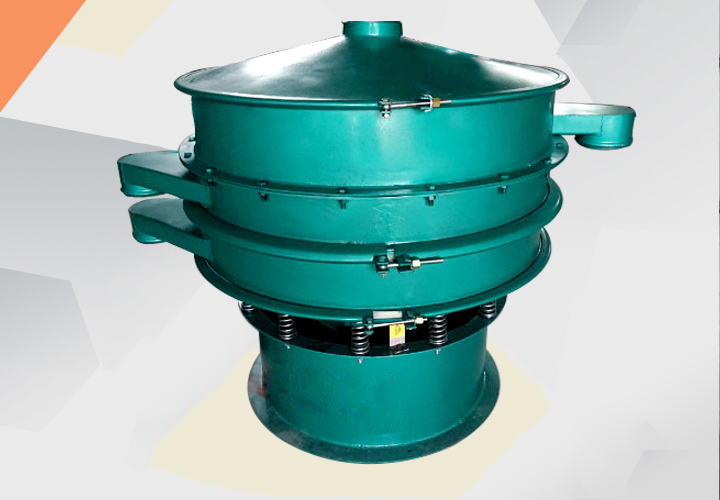

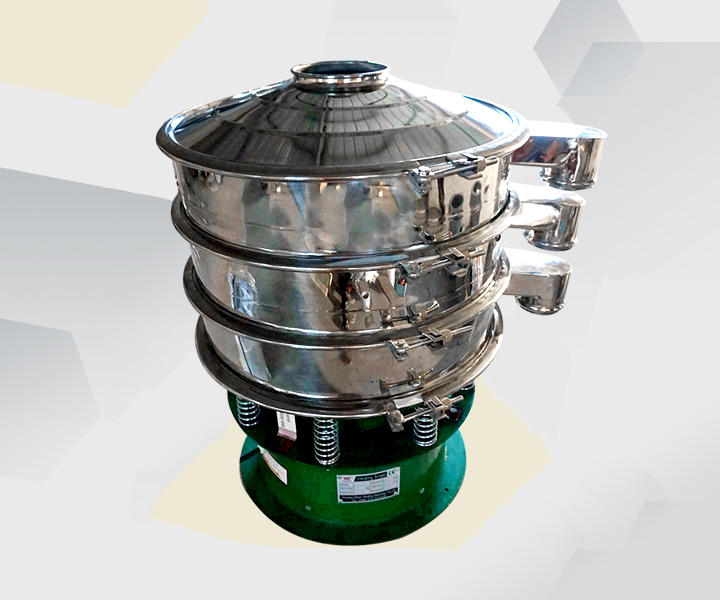

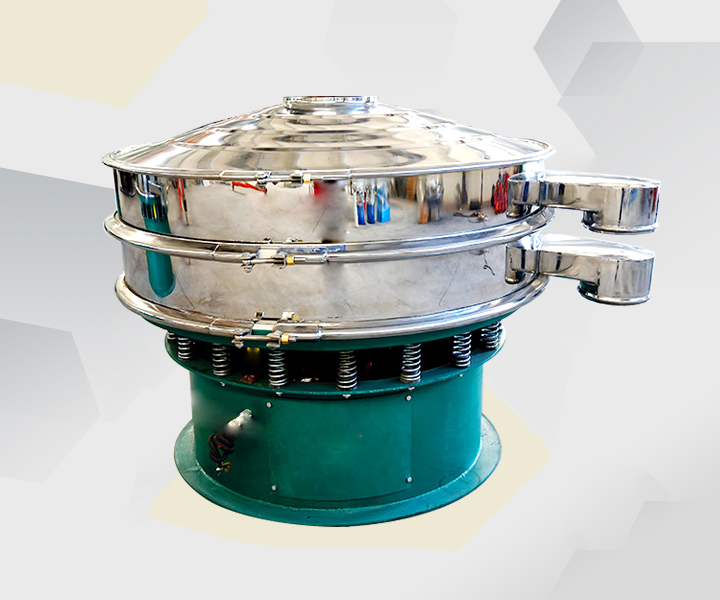

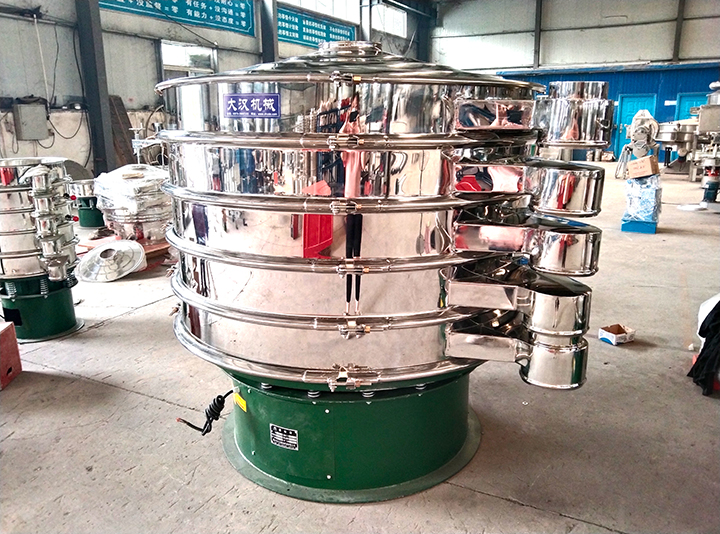

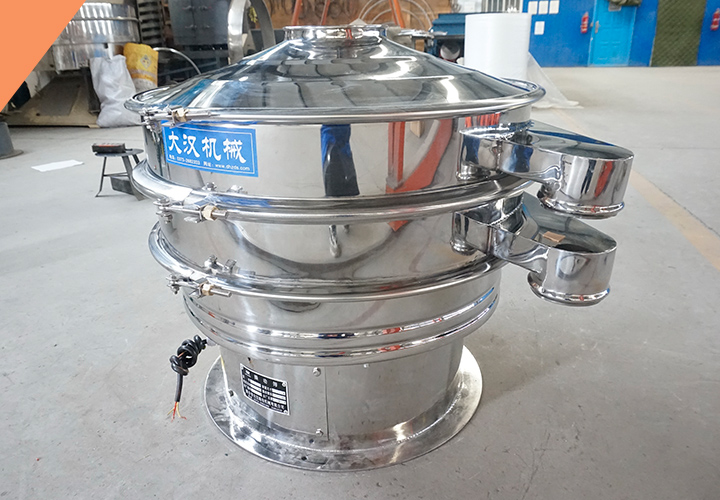

Industrial Sieve

Product Price: $800.00-$4,500.00/Set Get Latest Price

Request
Callback

One of precised powder sieve,suitable for any particle, powder and mucus material within a certain range.

Model	DH400-DH2000
Capacity	100-3300kg/h

Function:Screening\separation\sorting\sieving.

Material:Carbon Steel/Stainless Steel/plastic.

Efficient screening within 500 mesh.

Diameter:400mm,600mm,800mm,1000mm,1200mm,1500mm,1800mm,2000mm.

Yes! I am Interested

How does it works?

Industriial sieve is a high precision fine powder screening machine, with low noise and high efficiency. It uses a vertical vibrating motor as its excitation source. The upper and lower ends of the motor are equipped with eccentric weights, which convert the rotary motion of the motor into horizontal, vertical and inclined three-dimensional motion, and then transmit this motion,, achieving the purpose of classification, filtering and removal of impurities.

Structure of our industrial sieve

Dust cover

Screen frame

Vibrating motor

Damping spring

Screen

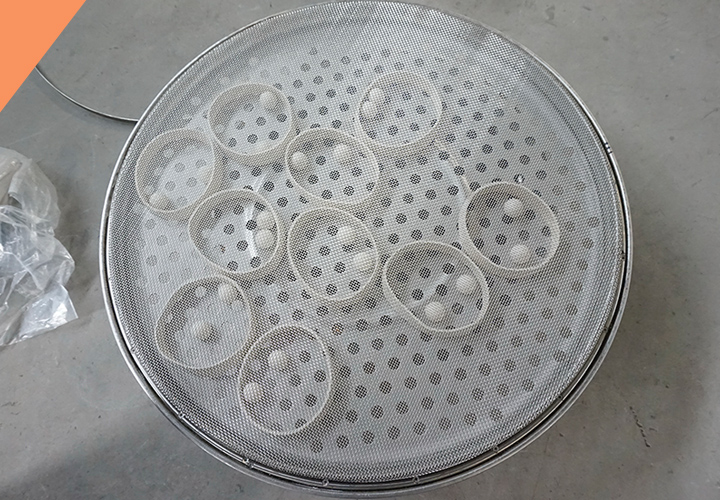

Cleaning system

Benefits of our industrial sieve

The mesh is not clogged, the powder is not flying, and it can be sieved to 500 mesh or 0.028 mm.

The coarse impurities are automatically discharged and can be connected.

Small size, space saving and easy to move.

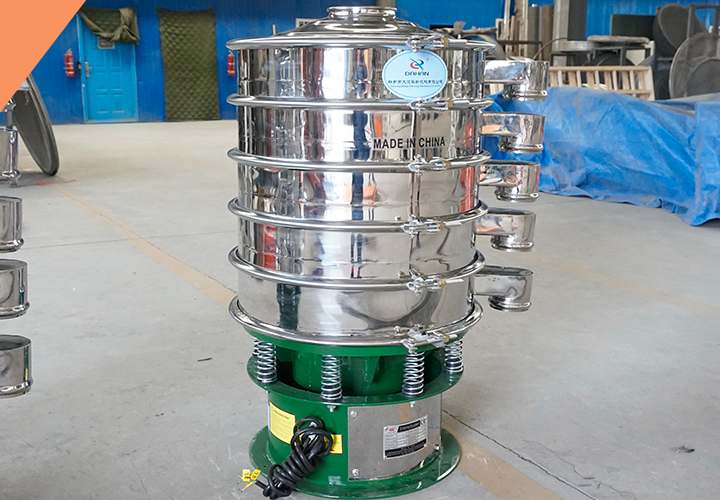

The screen can reach up to five layers.

Technical parameters

Model	Diameter mm	Screen area m	Screen size（mesh）	Feeding granularity mm
DH-600	Φ600	0.24	2-500	<Φ10
DH-800	Φ800	0.45	2-500	<Φ15
DH-1000	Φ1000	0.67	2-500	<Φ20
DH-1200	Φ1200	1.0	2-500	<Φ30
DH-1500	Φ1500	1.6	2-500	<Φ30
DH-1800	Φ1800	2.43	2-500	<Φ30
DH-2000	Φ2000	3.01	2-500	<Φ30
