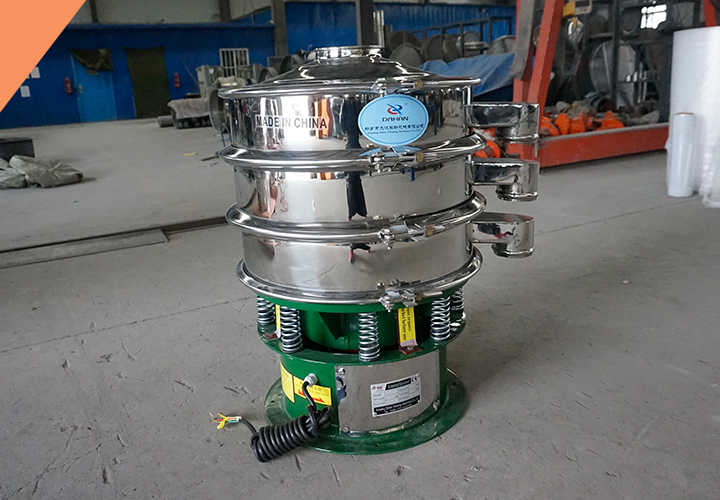

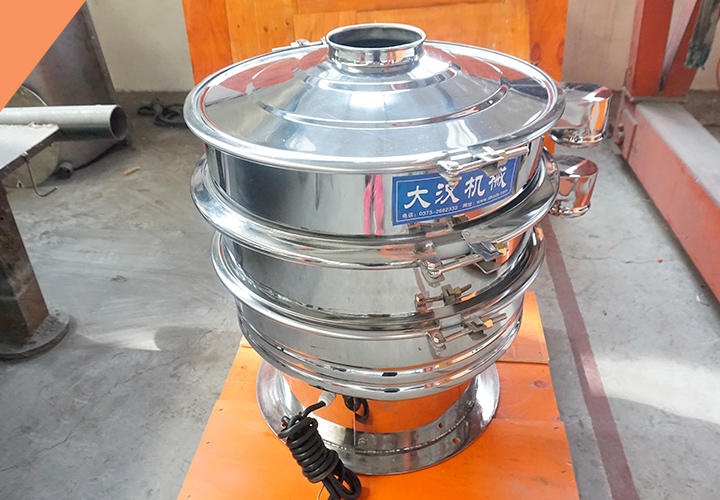

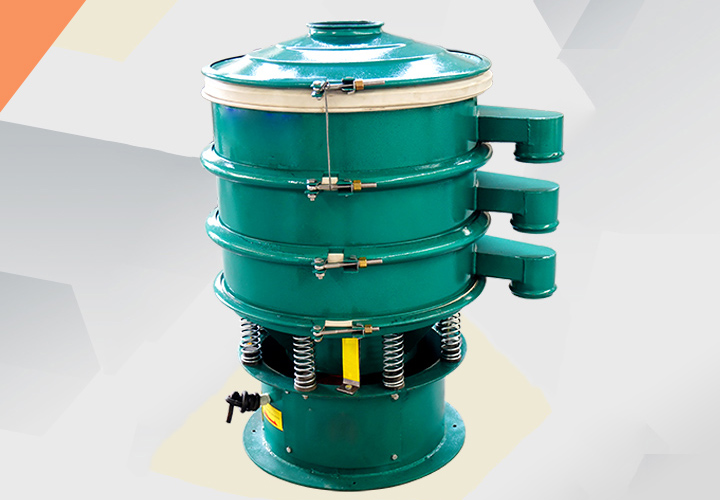

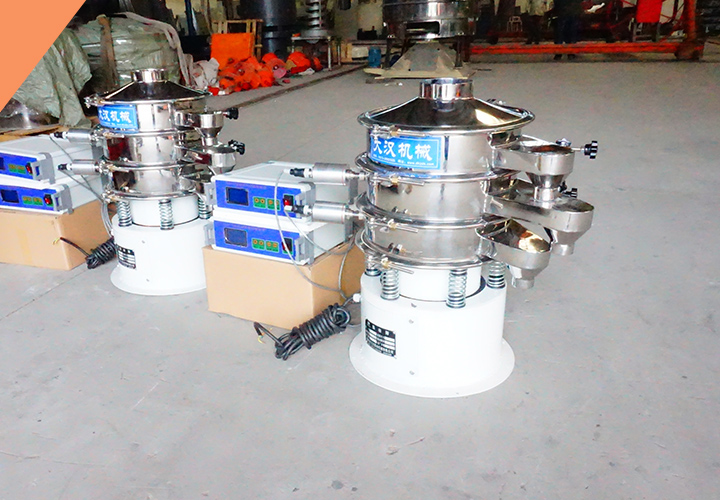

Vibration Filter

Introduction of vibration filter

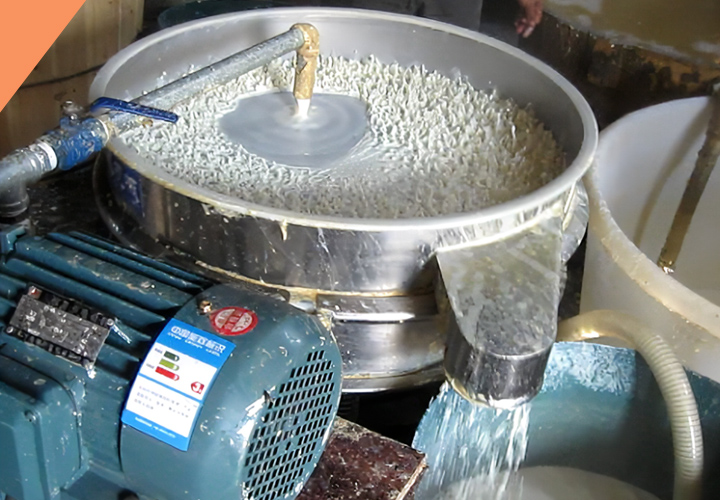

Vibration filter is an industrial liquid-solid separation equipment, which can continuously remove solids in the slurry, and can achieve high capacity at a mesh size as low as 20 microns, which is very suitable for minimizing sewage treatment costs and reducing product waste.

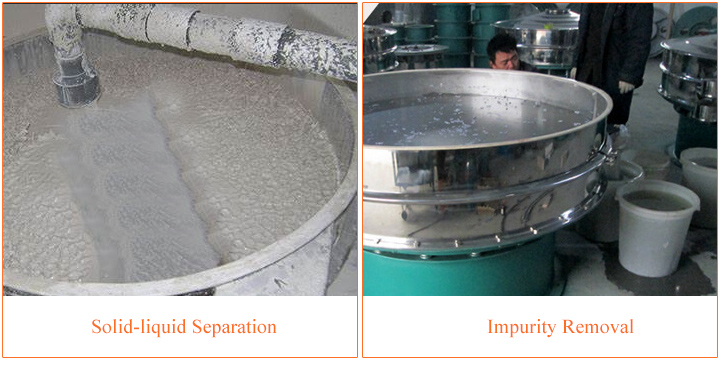

Function of vibration filter

1. Solid-liquid separation: can effectively process solid-liquid materials, quickly realize solid-liquid separation, and filter out materials of different meshes.

2. Impurity removal: This equipment can remove impurities of different sizes in a large amount of liquid materials and separate them quickly.

How does it works?

Vibration filter is a high precision fine powder screening machine. It uses a vertical vibrating motor as its excitation source. The upper and lower ends of the motor are equipped with eccentric weights, which convert the rotary motion of the motor into horizontal, vertical and inclined three-dimensional motion, and then transmit this motion,, achieving the purpose of classification, filtering and removal ofimpurities.It is used in food, chemical,paper-making, metallurgy and miningindustry etc.

Benefits of our viration filiter

1. The specially designed flanged type has a large feeding volume, and the upper frame heightened type can prevent liquid materials from splashing, and it is also convenient to observe the operation of materials on the screen at any time.

2. The high-power motor has a waterproof and dustproof device, which can screen a variety of materials and is safer to use.

3. Select single-layer double-outlet virtualization filiter, reduce the pressure and speed to the center of the stable screen through the buffer, the supply of slurry should be evenly adjustable, can be filtered to 5 microns, and can filter up to 5 tons per hour.

4. The steel or rubber scraper rotates on the screen to gently filter out the impurities contained in the material from the screen

5. It can quickly remove insoluble solids in various slurries, automatically discharge the slag, and can operate continuously.

Technical parameters of our viration filiter

Model	Diameter (mm)	Feeding Size (mm)	Frequency (RPM)	Layers	Power (kw)	Capacity (kg/h）
DH-400	400	<10	<1500	1-5	0.18	100
DH-600	600				0.25	200
DH-800	800				0.55	500
DH-1000	1000				0.75	800
DH-1200	1200				1.1	1200
DH-1500	1500				1.5	1800
DH-1800	1800				2.2	2000

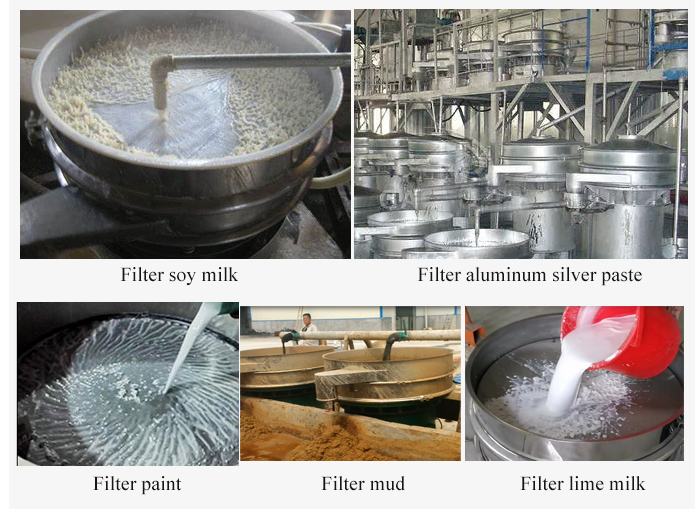

Application of viration filiter

Food industry: soy milk, fruit juice, beverages, soy sauce, condiments.

Chemical industry: paint, ink, color paste, paint, latex paint, aluminum powder paste.

Other industries: mud, pulp, waste liquid, Chinese and Western medicine liquid, etc.

Materials	Proportion	Mesh	Processing Method	Capacity (kg/hr IT/hr)	Model
Soy sauce	1	100	Wet	6500 IT	DH-1200-1S
Pineapple juice	1	100	Wet	3000㎏	DH-1000-1S
Chinese medicine extract	1	20	Wet	2000IT	DH-800-1S
Waste water	1-1.3	60	Wet	15000IT	DH-1000-1S
Dyeing and steaming wastewater	1	150	Wet	22000IT	DH-1000-1S
Waste oil	0.9	100	Wet	3800IT	DH-1000-1S
Mud	1.1	250	Wet	3200㎏	DH-1000-1S
