Brief introduction to the structure and principle of standard slap sieve

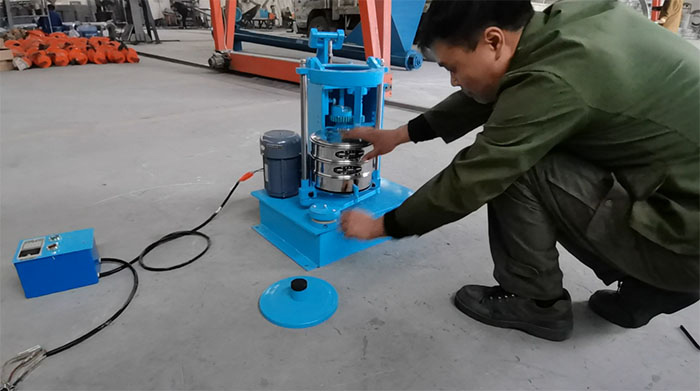

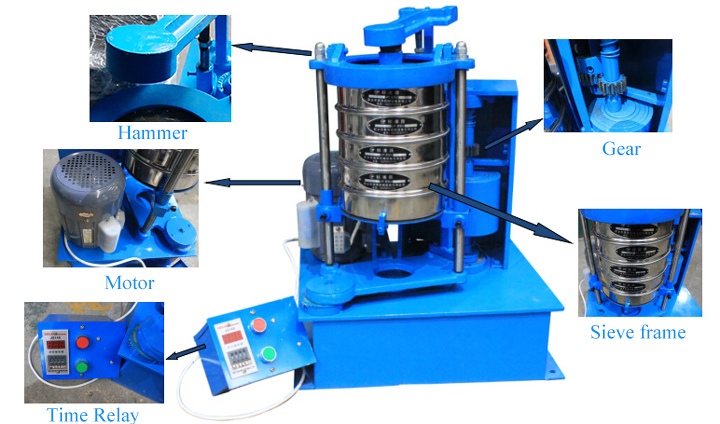

From top to bottom, the standard slap sieve is mainly composed of the slap hammer, the stroke adjustment rod of the heavy hammer, the hammer transmission gear, the stainless steel sieve frame, the sieve frame tray, the timing switch device, the motor, and the base.

Motor——Timer switch device——Heavy hammer transmission gear——Heavy hammer stroke adjustment lever——Slap the heavy hammer

The motor provides power for the operation of the machine. The sieveing time is set according to the material condition and the expected sieveing result, and the switch is turned on. After the power passes through the synchronous belt and is shifted by the transmission gear, it drives the main shaft to move, and the main shaft drives the eccentric wheel to make the slide plate drive the test. The sieve shakes from side to side, the slapping hammer and the stroke adjusting rod of the heavy hammer move. The function of the stroke adjusting rod is to control the lifting and falling height of the heavy hammer, that is, the slapping force.

Stainless Steel sieve Frame - sieve Frame Tray

According to the actual situation of the material and the requirements of particle size classification, select sieve frames with different mesh numbers, place the sieve frame on the tray, adjust the height of the tray, and carry out material sieveing.

During this process, the materials in the sieve frame are sieveed layer by layer by the large aperture sieve mesh, and are sieved into the sieve frame layers of different mesh numbers according to their own different particle sizes.

In addition to the left and right shaking motion of the ordinary sieve, the slap motion of the top of the slap sieve will increase the specific gravity of the material under the sieve (fine material) to a certain extent.
