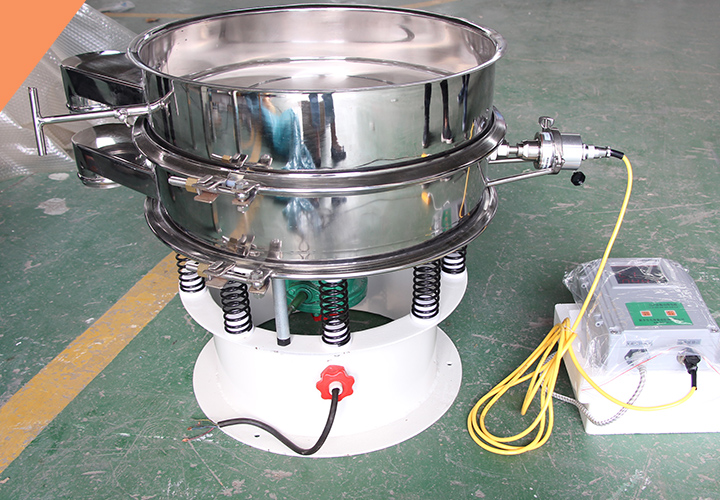

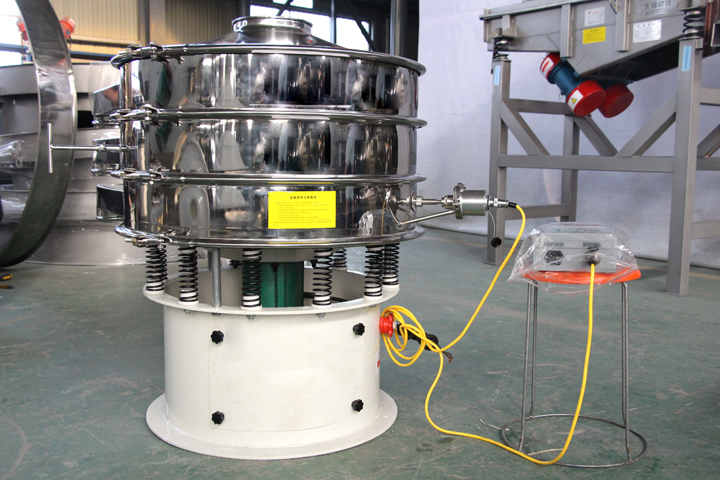

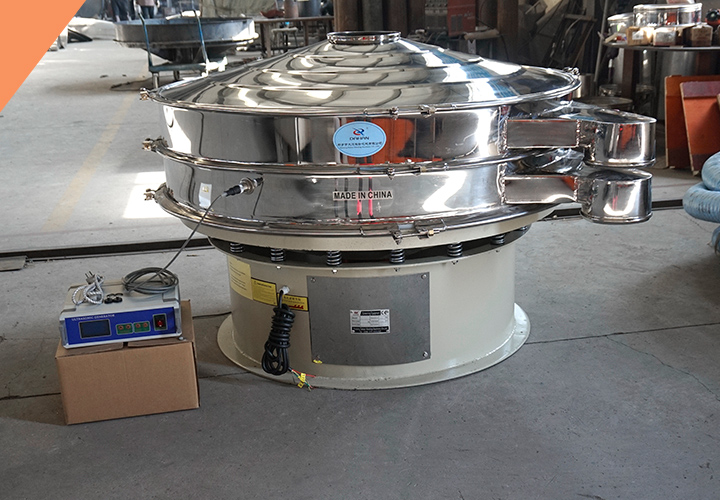

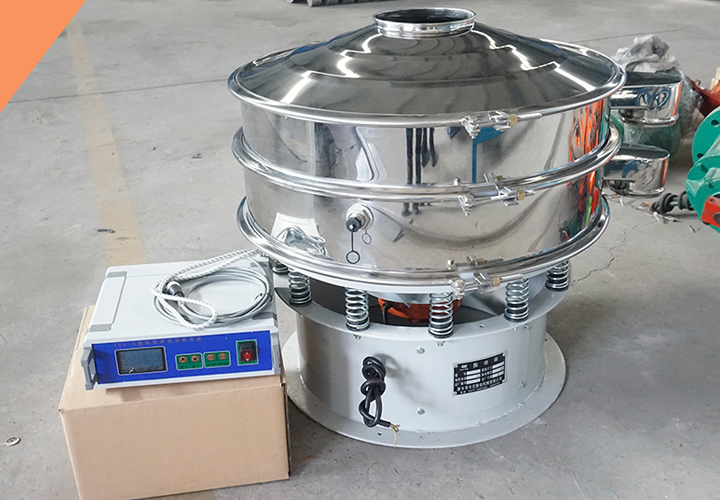

PVC Resin Rotary Vibrator Separator

Introduction of PVC resin rotary vibrator separator

PVC resin powder, also known as polyvinyl chloride, is a non-toxic and odorless white powder with good flame resistance, abrasion resistance, corrosion resistance and electrical insulation. It is the most commonly used in various synthetic materials One of the powder. In the production process of PVC resin powder, it is also necessary to use PVC resin rotary vibrator separator to screen and classify it. According to the different needs of customers, the screen diameter can range from 400-2000mm, 1-5 layers, 304 stainless steel and carbon steel. The models are complete.

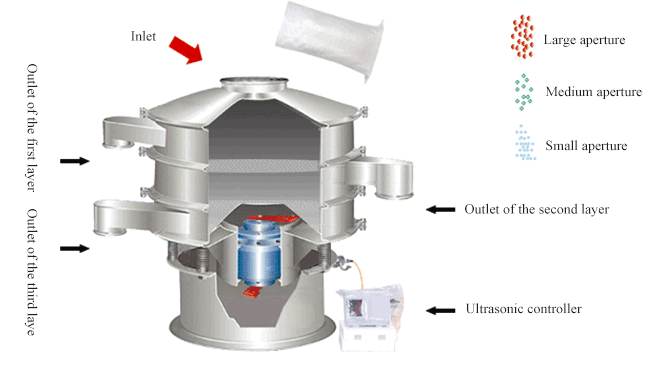

Working principle of PVC resin rotary vibrator separator

The PVC resin rotary vibrator separator uses a vertical vibration motor as the excitation source. The eccentric weight of the upper and lower ends of the vibration motor changes the rotating action into a vertical, inclined three-dimensional action, which is transmitted to the screen surface of the rotary vibrator separator; PVC resin enters the equipment through the inlet, according to the requirements of different material screening, through 1-5 layers of different mesh metal woven screens, in this process, the cleaning under the screens of each layer The net device (rubber bouncing ball) continuously hits the screen due to frequency vibration, so that the surface material of the screen can be sieved smoothly through the screen. The materials of different meshes are discharged in each layer after passing through the corresponding meshes of each layer. Orifice squeezing, and finally complete the purpose of impurity removal or filtration and classification.

Featured videos

Sieving PVC resin pellets

Sieving PVC resin powder

Application of PVC resin rotary vibrator separator

According to different purposes, we need to use different meshes of screening equipment, the common ones are 20 mesh, 60 mesh, 100 mesh, 200 mesh, etc. In order to meet customers' demands for the production of PVC resin with different meshes, the PVC resin rotary vibrator separator produced by our company has a variety of models, their screen surface specifications, screen layers, screen hole size, feed size, processing capacity, etc. Are not the same. Customers can choose the appropriate model according to their own screening requirements, material characteristics, and output needs.

Benefits of PVC resin rotary vibrator separator

1. It is suitable for fine or ultra-fine screening, especially for the most difficult shielding materials, and the screening accuracy can reach 90-95%.

2. Gentle screening will not damage any PVC resin structure, and it is not easy to generate static electricity.

3. The screen is fine to 500 mesh, and the mesh is not easy to be blocked.

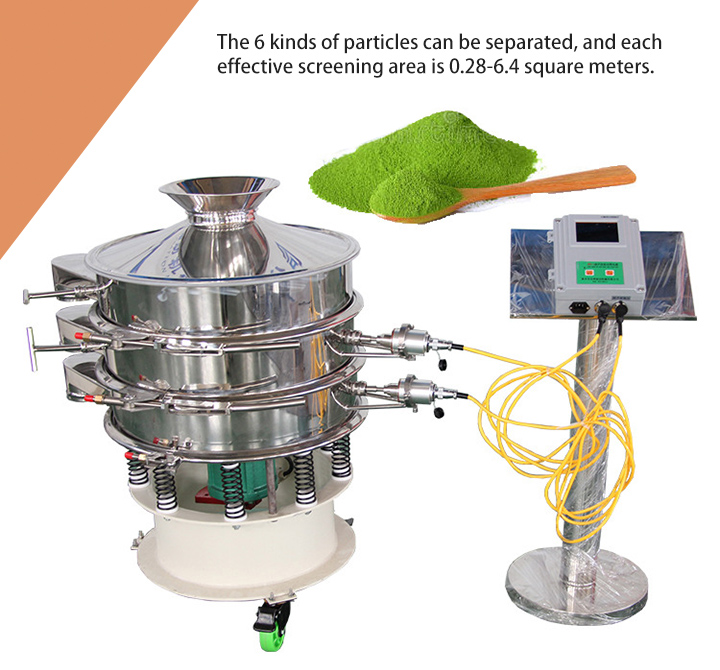

4. The 6 kinds of particles can be separated, and each effective screening area is 0.28-6.4 square meters.

5. Fully enclosed structure can reduce environmental pollution.

Technical parameters of PVC resin rotary vibrator separator

Model	Diameter (mm)	Feeding Size (mm)	Frequency (RPM)	Layers	Power (kw)	Capacity (kg/h）
DH-400	400	<10	<1500	1-5	0.18	100
DH-600	600				0.25	200
DH-800	800				0.55	500
DH-1000	1000				0.75	800
DH-1200	1200				1.1	1200
DH-1500	1500				1.5	1800
DH-1800	1800				2.2	2000

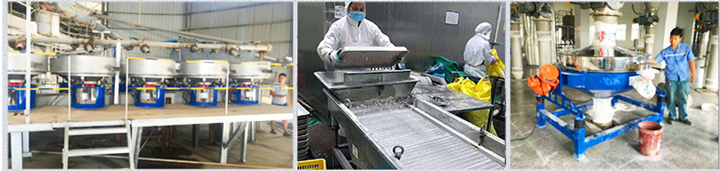

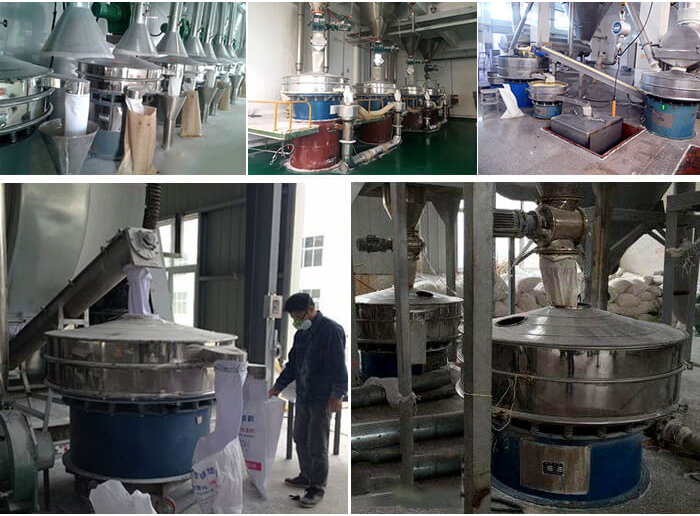

Related Cases

Material	Proportion	Mesh	Processing method	Capacity (kg/hr IT/hr)	Model
Epoxy resin	1.8	100	Dry	280㎏	DH-1000-1S
MBS resin	0.3	30		350㎏	DH-800-1S
Melamine resin	0.4	30/60		36㎏	DH-600-2S
PVC resin	1	10㎜/5㎜		3000㎏	DH-1200-2S
Polyethylene powder	0.45	48/100		100㎏	DH-800-2S
Polyethylene resin	0.5	60		450㎏	DH-1000-1S
Aggregate particles	1.05	10/20		3100㎏	DH-1000-2S
