Pharmaceutical industry's selection requirements for pharmaceutical vibro sifter

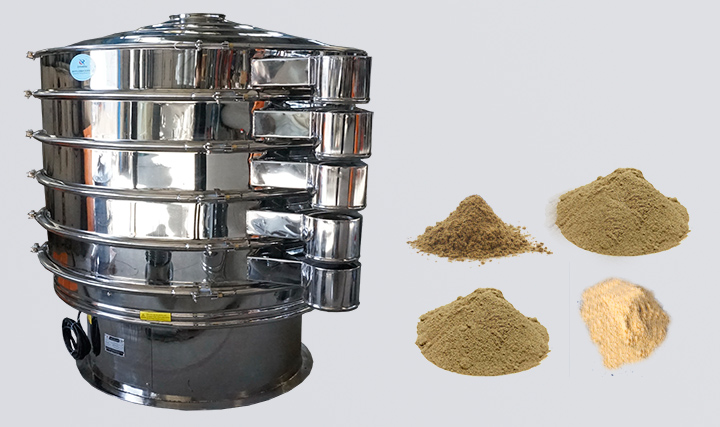

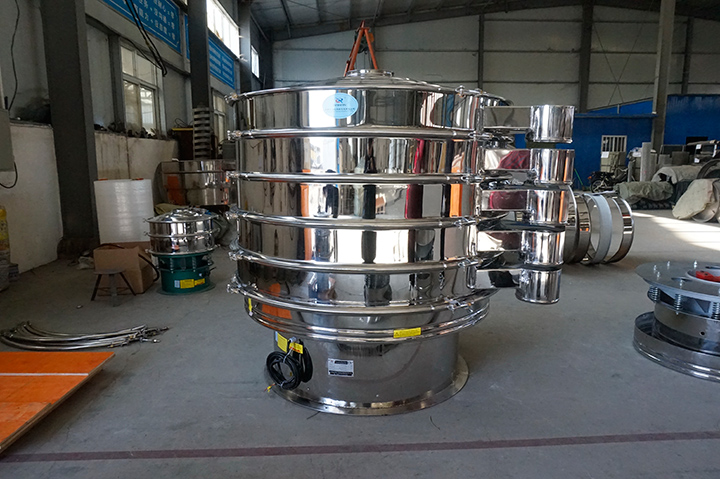

Pharmaceutical vibro sifter Common screening machines are vibrating screens and linear vibrating screens. Two unbalanced weights are installed on the drive shaft of the vibrating motor. The sand net moves in the vertical direction, thereby synthesizing the three-dimensional vibration of the screen. The material falls into the center of the screen. After screening, the coarse material on the screen is discharged from the outlet, and the fine material from the screen is discharged from the lower outlet. The vibrating screen can be equipped with five screens.

The vibrating screen commonly used in the pharmaceutical industry is made of stainless steel 304 or even 316. The parts in contact with the material are not allowed to be contaminated by impurities. The sealing accessories must also meet the food hygiene standards (silicone seals). The use of vibrating screens in pharmaceuticals , Has very strict requirements and must meet the GMP production standards of the pharmaceutical industry.

For the GMP standard, the material must be 304 stainless steel or 316 stainless steel. The seals must be pharmaceuticals. The equipment must be carefully cleaned with alcohol before leaving the factory. Due to the different materials handled by various pharmaceutical manufacturers, the vibrating screen motor should also be selected. For different materials, the requirements for the motor are also different, such as ordinary vibrating motors or explosion-proof motors.

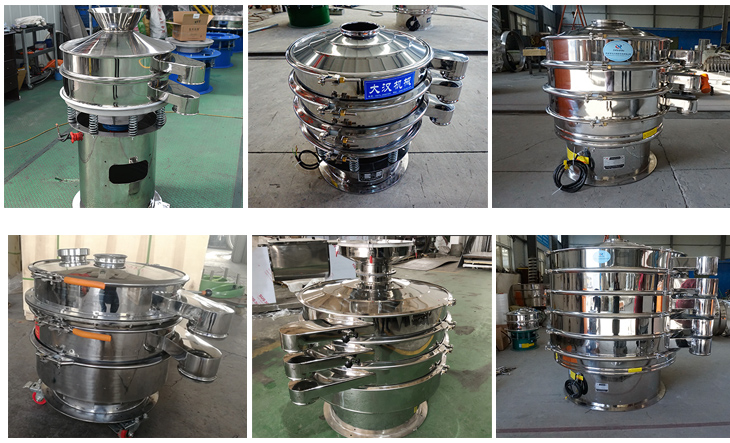

The models of Dahan vibrating screen are: DH-400, 600, 800, 1000, 1200, 1500, 1800, etc., and can also be produced according to user requirements.
