The working principle of circular vibrating sieve

Vibrating screens are divided into Circular Vibrating Sieves, linear vibrating screens, rotary vibrating screens and other types. Today I want to introduce you to Circular Vibrating Sieves. The Circular Vibrating Sieve is a vibrating screen with an elliptical motion of the screen box. Its models are diverse and are widely used in the industry. Below, we mainly introduce the working principle of the Circular Vibrating Sieve, so that customers can understand how it works.

1. The working principle of Circular Vibrating Sieve

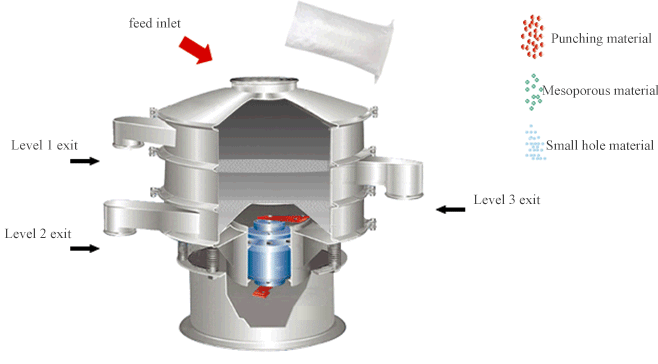

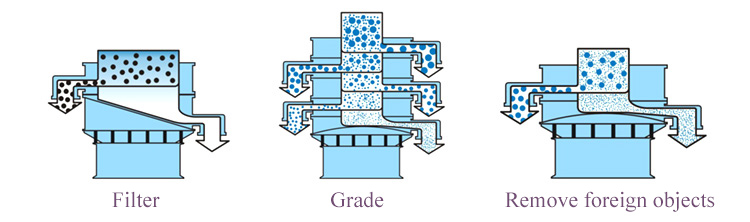

The Circular Vibrating Sieve uses the exciting force generated by the vibrating screen machine to transmit it to the screen box, which promotes the material on the screen surface to make a directional continuous jumping motion. The small diameter material is screened to the lower layer through the sieve holes of the screen and becomes the screen. Substance: Large-diameter materials continue to make continuous jumping motions on the screen, and finally discharged through the discharge port, thereby completing the screening and filtering of the entire material.

2. Circular vibrating screen structure

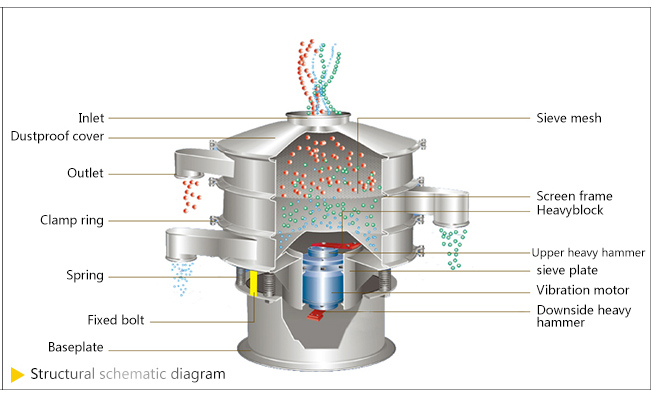

Circular vibrating screen mainly consists of screen box, support spring group/spring boom, vibration exciter, driving device, screen mesh, screen frame, screen cleaning device and other components.
