Juice Vibrating Filter Sieve

Introduction of juice vibrating filter sieve

The juice needs to be filtered through the juice vibrating filter sieve to remove the pulp and other impurities in the juice, so as not to affect the taste, and then packaged. Compared with the original fruit type production line produced by fresh fruit through peeling and juice extraction, it has less investment , Small footprint, easy management, quick results, etc.

Benefits of juice vibrating filter sieve

1. The heightened design of the screen frame, large feeding amount, effectively prevent material splashing.

2. It is made of 304 stainless steel and is polished internally and externally, which is clean and hygienic and will not leak materials.

3. Impurities and coarse materials are automatically discharged, and continuous operation is possible.

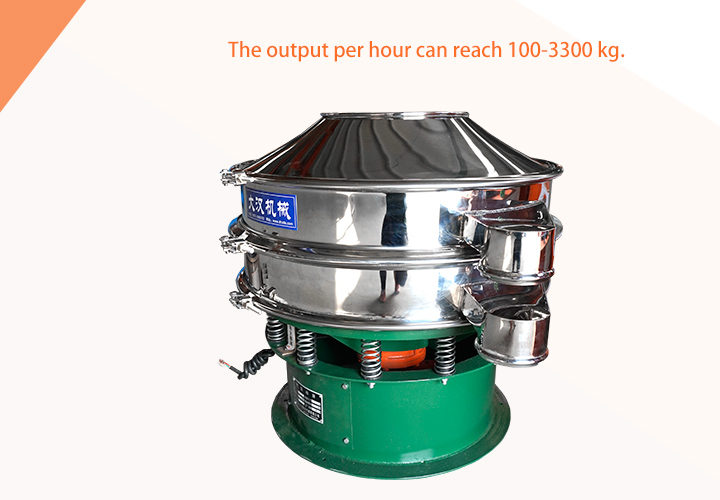

4. The output per hour can reach 100-3300 kg.

Working principle of juice vibrating filter sieve

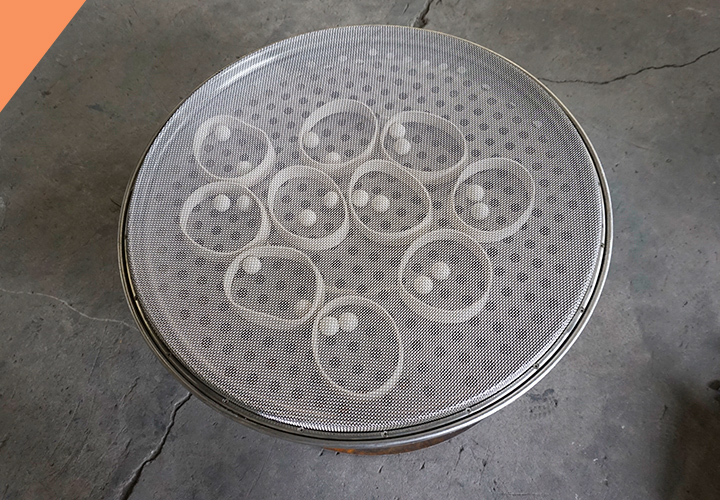

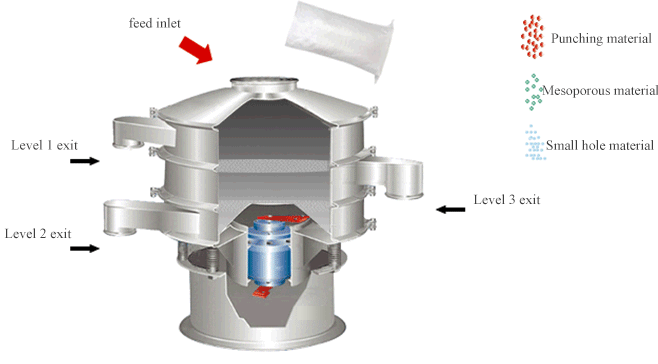

Juice vibrating filter sieve uses YZUL vertical vibration motor as the excitation source, and uses the eccentric weights at the upper and lower ends of the vibration motor to convert the rotating motion into a horizontal, vertical, and inclined three-dimensional motion, which is transmitted to the screen surface of the rotary vibrating screen; The material enters the equipment through the inlet. According to different material screening requirements, the material passes through 1-5 layers of sieving with different mesh metal woven screens. In this process, the cleaning is located under the screens of each layer. The net device (bouncing ball) continuously hits the screen through frequency vibration, so that the material on the screen can be smoothly screened through the screen, and effectively solves the problem of material blockage. The materials of different meshes pass through the screens of the corresponding meshes in each layer. After the net, it is discharged at the discharge port of each layer, and finally achieves the purpose of screening and removing impurities or filtering and grading.

Technical parameters of juice vibrating filter sieve

Model	Diameter mm	Screen area m	Screen size（mesh）	Feeding granularity mm
DH-600	Φ600	0.24	2-500	<Φ10
DH-800	Φ800	0.45	2-500	<Φ15
DH-1000	Φ1000	0.67	2-500	<Φ20
DH-1200	Φ1200	1.0	2-500	<Φ30
DH-1500	Φ1500	1.6	2-500	<Φ30
DH-1800	Φ1800	2.43	2-500	<Φ30
DH-2000	Φ2000	3.01	2-500	<Φ30

Application of juice vibrating filter sieve

Process flow:

Raw material---cleaning-crushing--juice extraction---sieve (coarse filtration)---clarification and sieving (fine filtration)---homogenization and decolorization---concentration---adjustment and mixing ----Sterilization

Applicable materials:

Apple juice, strawberry pulp juice, red grape juice, hawthorn juice, kiwi juice, grapefruit juice, carrot juice, turbid celery juice, peach juice, wax gourd juice, pineapple juice, etc.
