Vibration Sieve

Introduction of vibration sieve

The model of vibration sieve is divided into eight equipments with different dimensions from 400-2000mm. It can also be equipped with 1-5 layers of screens with different specifications according to the different needs of customers to screen and remove impurities at the same time, which can meet various powder and granular shapes. Material screening and liquid filtration requirements.

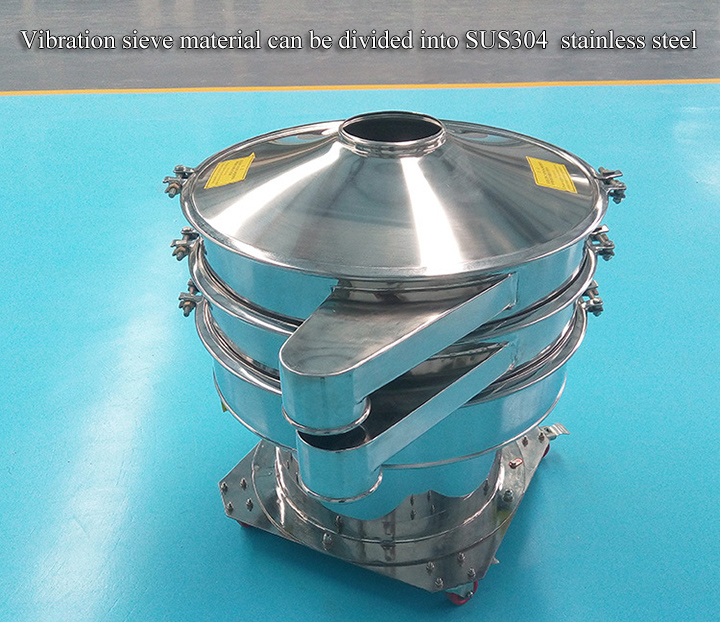

The vibration sieve material can be divided into SUS304 stainless steel, Q235A carbon steel, and PP plastic anti-corrosion design and production. Users can choose the material and model of the sieve according to their material characteristics and industrial requirements.

Benefits of vibration sieve

1. It can meet the requirements of various powder and particle screening requirements and liquid filtration requirements. The screening is as fine as 500 mesh or 0.028mm, and liquid materials can be filtered to 5 microns.

2. Bounce net cleaning devices are installed under the screens of each layer. By continuously hitting the screens, the materials can be screened smoothly and effectively avoid the problem of material blockage.

3. Impurities and coarse materials are automatically discharged, continuous operation is possible, and the output can reach up to 5 tons/hour

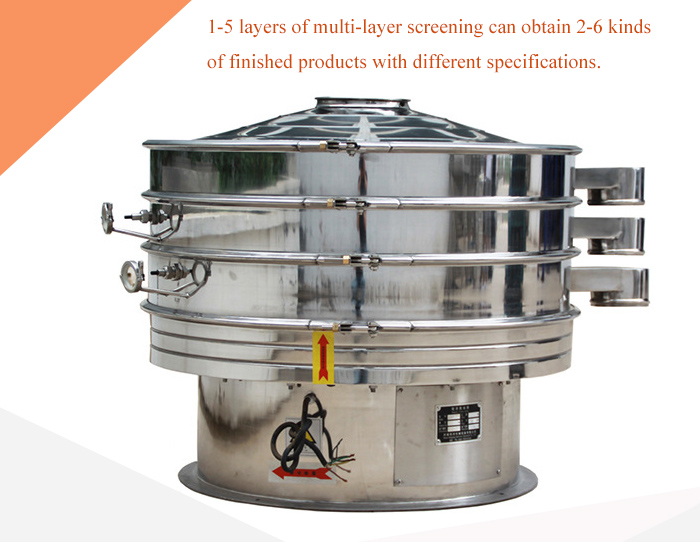

4. 1-5 layers of multi-layer screening can obtain 2-6 kinds of finished products with different specifications.

5. Fully sealed structure, no powder overflow, no liquid overflow.

6. The discharge port can be rotated 360°, and it only takes 3-5 minutes to replace the screen.

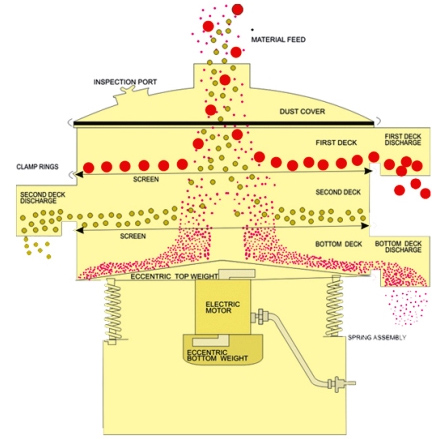

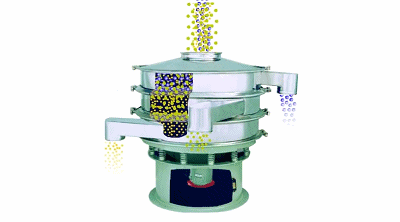

Working principle of vibration sieve

Vibration sieveuses the YZUL vertical vibration motor as the excitation source, and uses the eccentric weights at the upper and lower ends of the vibration motor to convert the rotary motion into a horizontal, vertical, and inclined three-dimensional motion, and transmits it to the screen surface of the rotary vibrating screen; The feed inlet enters the equipment. According to different material screening requirements, the material passes through 1-5 layers of sieving with different mesh metal woven screens. In this process, a cleaning device is located under the screens of each layer. (Bouncing ball) Continuously hitting the screen through frequency vibration, so that the materials on the screen can be smoothly screened through the screen, and effectively solve the problem of material blockage. After the materials of different meshes pass through the screens of the corresponding meshes of each layer It is discharged at the discharge port of each layer, and finally achieves the purpose of screening and removing impurities or filtering and grading.

Technical parameters of vibration sieve

Technical parameters

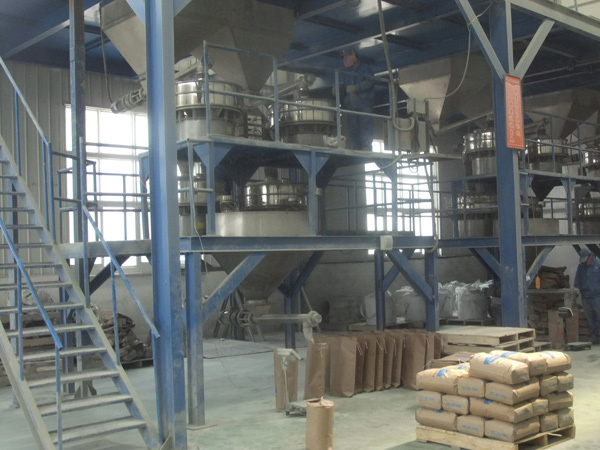

Application of vibration sieve

Chemical industry: resin, paint, industrial medicine, cosmetics, paint, Chinese medicine powder, etc.

Food industry: powdered sugar, starch, salt, rice flour, milk powder, soy milk, egg powder, soy sauce, fruit juice, etc.

Metals, metallurgy and mining: aluminum powder, lead powder, copper powder, ore, alloy powder, welding rod powder, manganese dioxide, electrolytic copper powder, electromagnetic materials, grinding powder, refractory materials, kaolin, lime, alumina, heavy carbonic acid Calcium, quartz sand, etc.

Pollution treatment: waste oil, wastewater, dyeing and finishing wastewater, additives, activated carbon, etc.
