Cocoa Powder Sieve

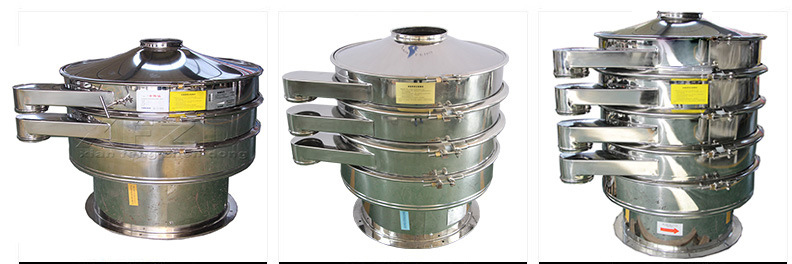

Introduction of cocoa powder sieve

Cocoa powder sieve is specially used in cocoa powder sieve production line, the raw material is poured on the sieve, then sieved to remove all oversized powder, coarse lumps and impurities, capable of sieving products with large throughput. 1300 kg of cocoa powder is screened through a 2 mm sieve process in one hour. This powder sieve becomes the most efficient solution for cocoa powder screening in terms of output and productivity compared to conventional separators.

The sieve is made of food-grade SUS304 stainless steel, and the whole machine has been polished inside and outside. There is no weld at the weld seam, and the cleanliness is high, which can ensure that the material is not polluted during the sieving process and meets the hygienic requirements of the food industry. It is also easy to disassemble and install Clean, reduce downtime and increase operator safety, also available in different sizes and options to meet your screening requirements.

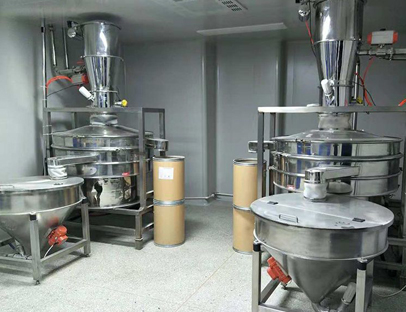

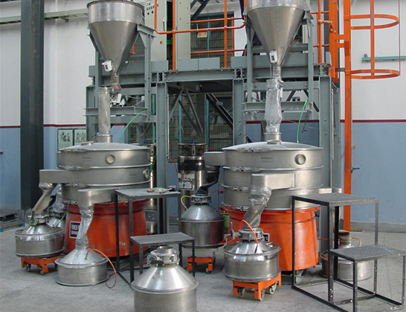

Application of cocoa powder sieve

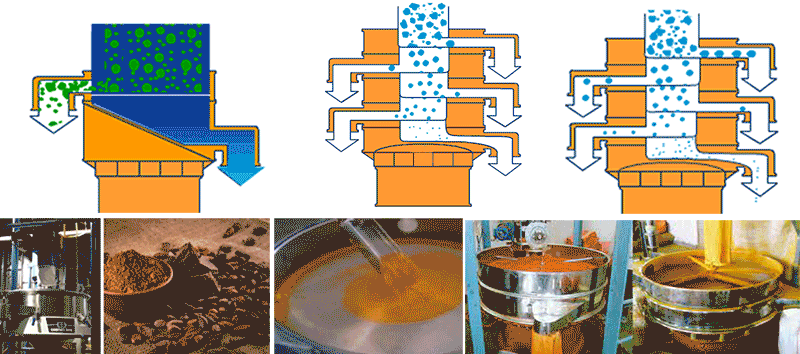

Cocoa powder sieve is used to sieve all kinds of cocoa powder to remove all oversized powders, coarse blocks and impurities. At the same time, by increasing the number of sieve layers, the cocoa powder is classified with different fineness to ensure the cocoa after sieving The powder is more uniform and fine.

Featured Videos

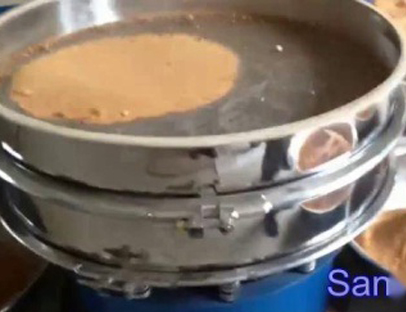

Sieving 100 mesh cocoa powder

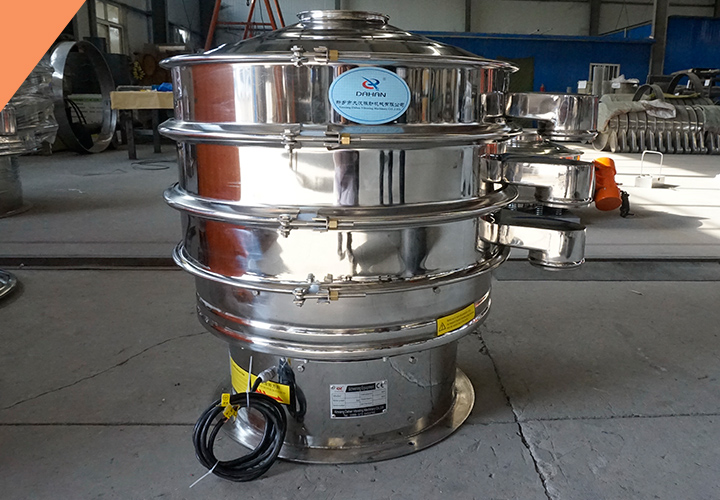

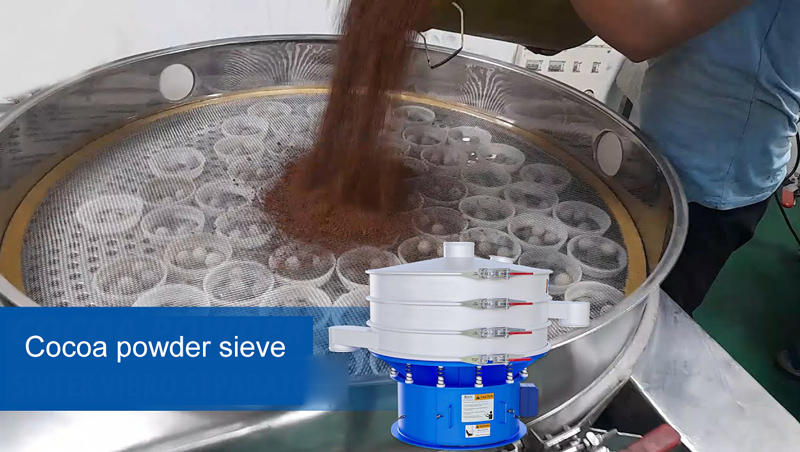

Cocoa powder sieve

Benefits of cocoa powder sieve

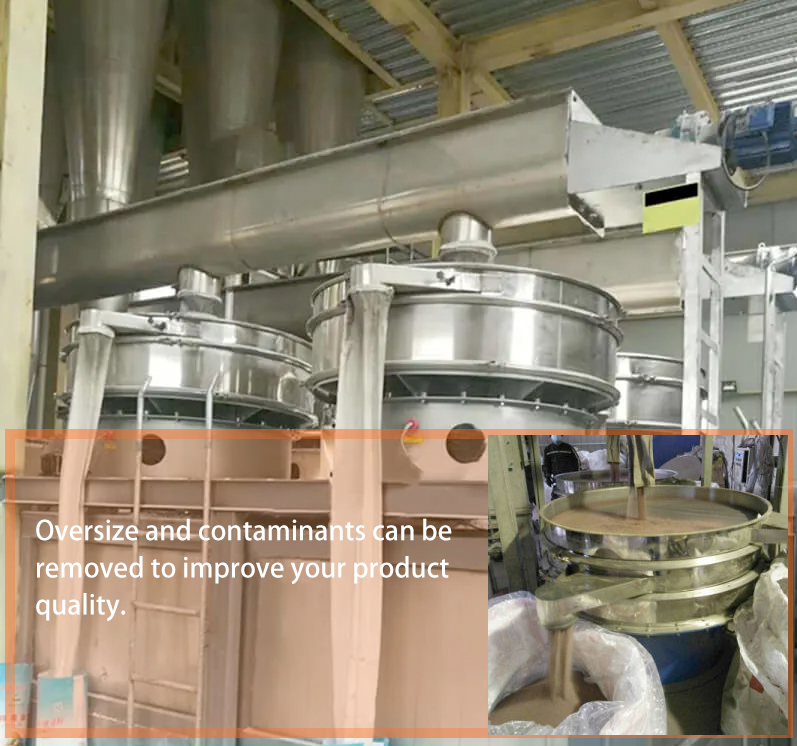

1. Improves product quality by eliminating potential contaminants in cocoa powder, such as large particles or agglomerates.

2. Made of the highest quality SS 304 and 316L grade stainless steel to ensure no particle deposition and zero contamination, and meet food grade standards.

3. creening to 500 mesh or 0.028mm, the finished product has a uniform particle shape, and the addition of bouncing balls made of silica gel can effectively prevent the screen hole from clogging and improve the screening accuracy and output.

4. The fully sealed structure can ensure that the materials will not appear dust flying and liquid splashing during the screening process.

5. The machine can be quickly disassembled without any tools and is easy to clean, thus increasing productivity and avoiding any chance of cross-contamination between batches.

6. Compact size meets industrial and commercial needs with minimal headroom and floor space, and fits comfortably on any production line.

Technical parameters of cocoa powder sieve

Model	Diameter mm	Screen area m	Screen size（mesh）	Feeding granularity mm
DH-600	Φ600	0.24	2-500	<Φ10
DH-800	Φ800	0.45	2-500	<Φ15
DH-1000	Φ1000	0.67	2-500	<Φ20
DH-1200	Φ1200	1.0	2-500	<Φ30
DH-1500	Φ1500	1.6	2-500	<Φ30
DH-1800	Φ1800	2.43	2-500	<Φ30
DH-2000	Φ2000	3.01	2-500	<Φ30
