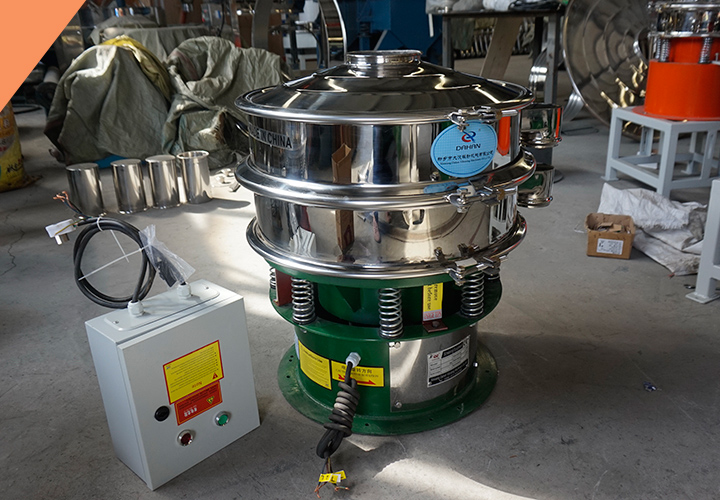

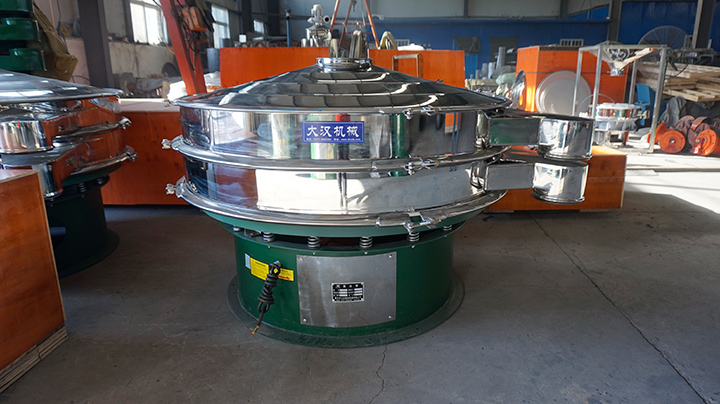

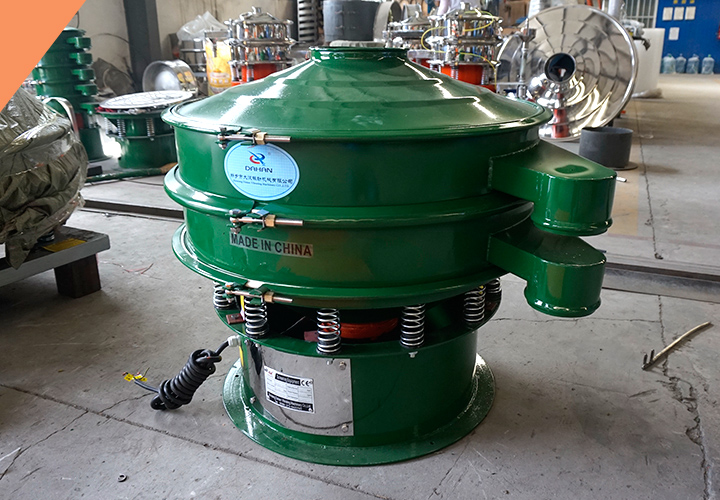

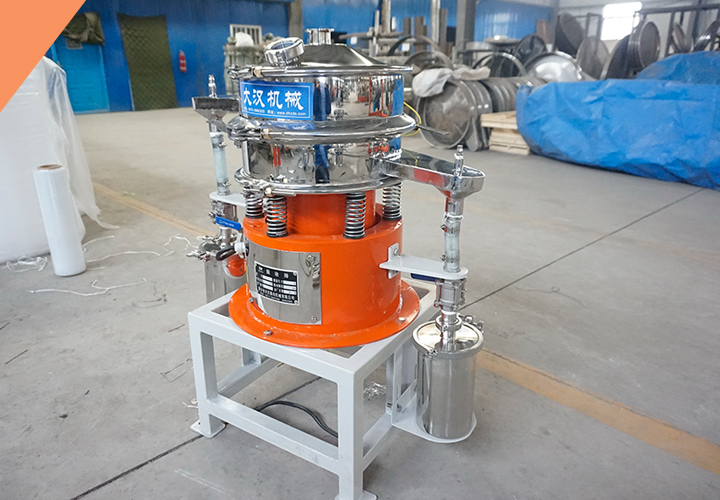

Sieving Machine

Introduction of sieving machine

Sieving machine is mainly suitable for screening granular, flake materials, fine powder, micro powder, ultra-light and ultra-fine materials, and can also be used for separation and recovery of solids in liquids.

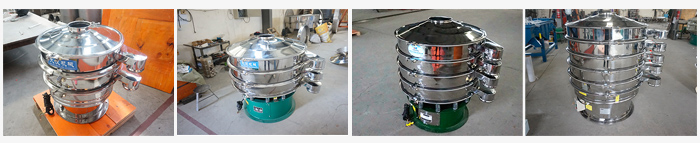

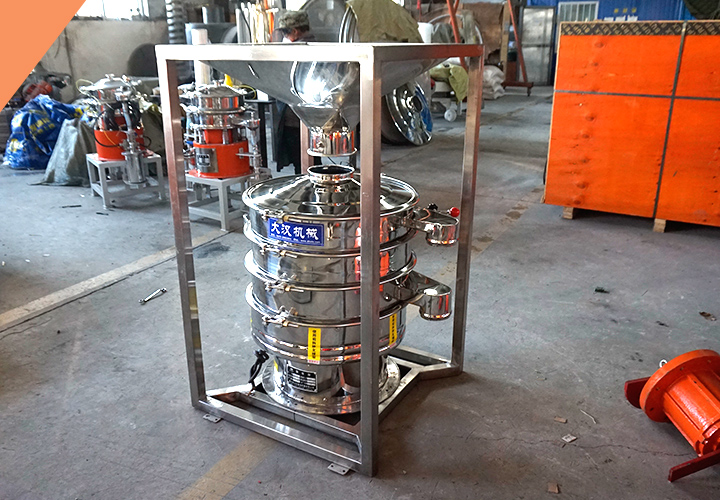

Sieving machine manufacturer-Dahan Machinery The sieving machine has a complete range of models, with diameters of 400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, and can also be customized for you.

Benefits of sieving machine

1. The dedicated vertical vibration motor is the excitation source without mechanical transmission and high efficiency.

2. It is suitable for sieving and filtering various powders, granules, mucus and other materials.

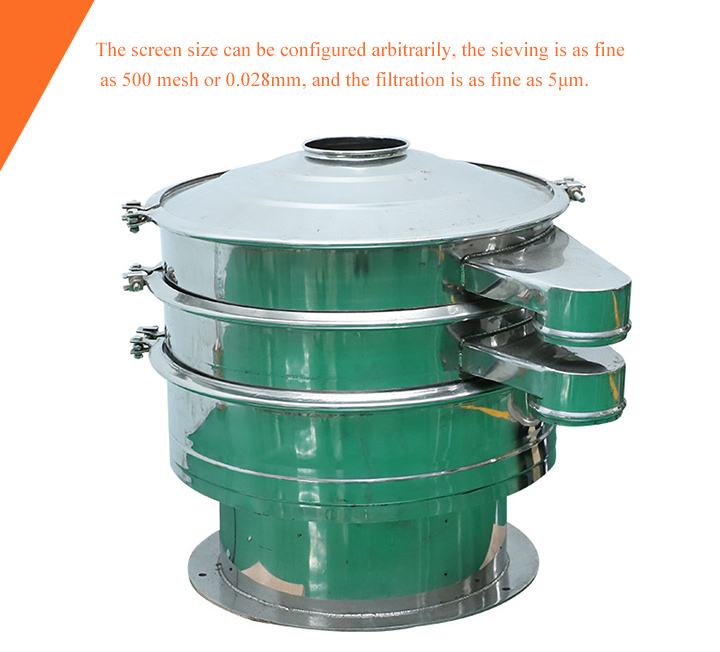

3. The screen size can be configured arbitrarily, the sieving is as fine as 500 mesh or 0.028mm, and the filtration is as fine as 5μm.

4. The whole machine has good airtightness, the powder does not fly, and the liquid does not leak. It can be used in single or multiple layers, up to 5 layers.

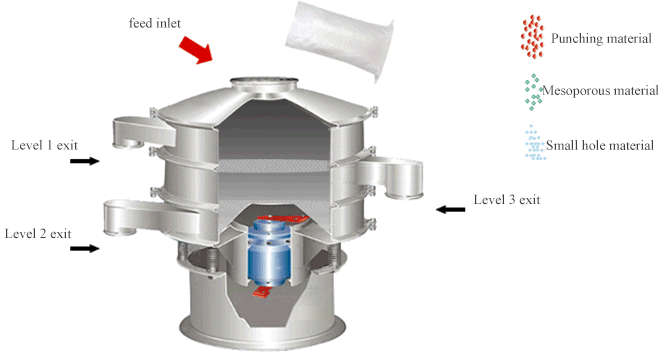

Working principle of sieving machine

The Sieving machine uses a vertical motor as the vibration source. The upper and lower ends are equipped with eccentric hammers to convert the rotation of the motor into a horizontal-vertical-tilt three-dimensional motion, and then this motion is transmitted to the screen surface, so that the material is gradually expanded on the screen surface. With open line movement, the rotary vibrating screen has the advantages of long material running trajectory and high screen surface utilization rate. It can carry out fine screening and probabilistic screening of materials.

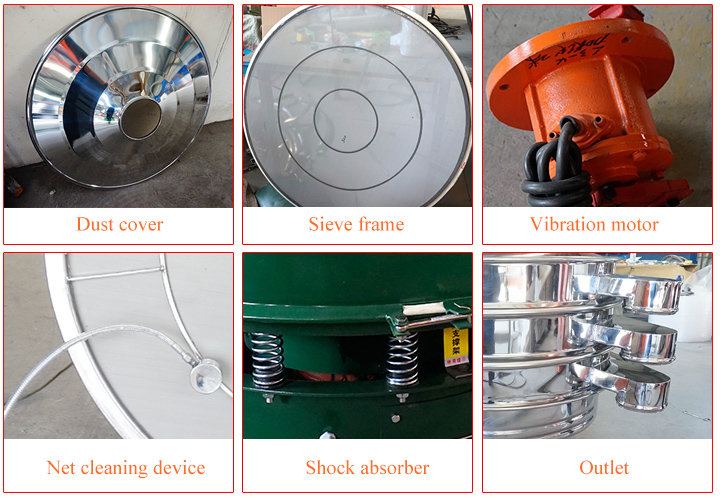

Structure of sieving machine

It mainly consists of the following parts:

1. Feed inlet, dust cover

2. Sieve frame, food, discharge port

3. Vibration motor, motor frame support, vibration transmission body

4. Damping spring, spring support, spring washer

5. Base

Technical parameters of sieving machine

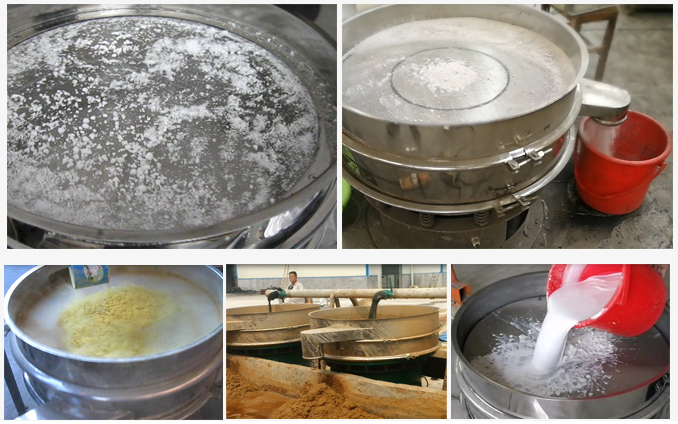

Application of sieving machine

Food industry: flour, coffee powder, cocoa powder, condiments, food additives, tea, mustard, fatty acids, starch, sweet potato starch, sugar, corn meal, banana powder, chili powder, lactose, etc.

Chemical industry: plastics, rubber, resins, dyes, fillers, resin powders, polymers, fluorine powder, carbon powder, polyurethane, magnesium oxide, magnesium powder, glass powder, fuses, glass fibers, phosphors, etc.

Metal powder: copper powder, iron powder, aluminum powder, lead powder, zinc powder, alloy powder, magnetic materials, aluminum powder, magnesium dioxide, flux powder, magnesium dioxide, etc.

Ceramics: clay, activated carbon, perlite, coke, silicon, tar, kaolin, volcanic rock, emery, etc.
