Milk Powder Sifter

Introduction of milk powder sifter

Milk powder sifter mainly screens out impurities and agglomerations in the milk powder production line that do not meet the requirements of the finished milk powder. It is forged with high-quality stainless steel. It is easy to clean after different batches of products have been sieved. Its simple design can quickly disassemble and clean without Any tool, add a closed cover to eliminate dust and smoke. This not only helps milk powder manufacturers meet the standards of a strict zero-dust environment, but also ensures the health and safety of operators. Our milk powder sifter has specifications of 400mm, 600mm, 800mm, 1000mm, 1200mm, 1800mm, 2000mm, etc., which are matched with various process lines.

Working principle of milk powder sifter

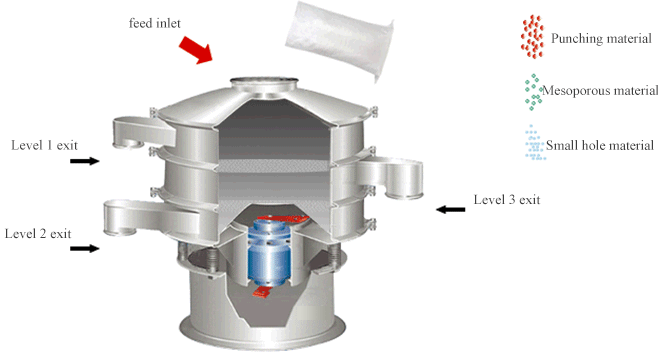

Milk powder sifter uses the YZUL vertical vibration motor as the excitation source, and uses the eccentric weights at the upper and lower ends of the vibration motor to convert the rotating motion into a horizontal, vertical, and inclined three-dimensional motion, which is transmitted to the screen surface of the rotary vibrating screen; The material enters the equipment through the inlet. According to different material screening requirements, the material passes through the sieve of the sieve for layering. In this process, the bouncing ball, a cleaning device located under the sieve, continuously hits the sieve, causing the sieve to be layered. The material can be screened through the mesh smoothly and effectively solves the problem of material blockage. The over-screen material and under-screen material are discharged from different outlets, so as to achieve the purpose of screening and removing impurities or filtering and grading.

Featured videos

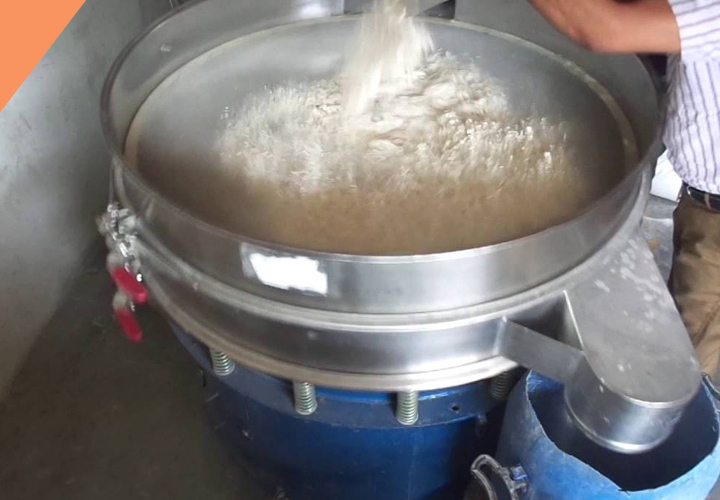

Remove foreign matter in milk powder

Milk powder grading

Benefits of milk powder sifter

1. All contact parts are made of high-quality stainless steel, clean and sanitary, and pollution-free.

2. The completely enclosed airtight structure eliminates dust and smoke and improves the production environment.

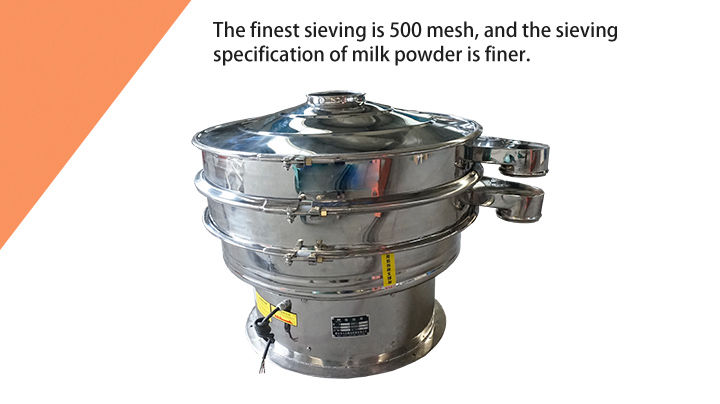

3. The finest sieving is 500 mesh, and the sieving specification of milk powder is finer.

4. 1-5 layers of screens can be selected, and 2-6 grades of sorting can be carried out at the same time.

5. There is no external force, no damage to the structure of the milk powder particles, and the original quality is fully guaranteed.

Technical parameters of milk powder sifter

Model	Diameter (mm)	Feeding Size (mm)	Frequency (RPM)	Layers	Power (kw)	Capacity (kg/h）
DH-400	400	<10	<1500	1-5	0.18	100
DH-600	600				0.25	200
DH-800	800				0.55	500
DH-1000	1000				0.75	800
DH-1200	1200				1.1	1200
DH-1500	1500				1.5	1800
DH-1800	1800				2.2	2000

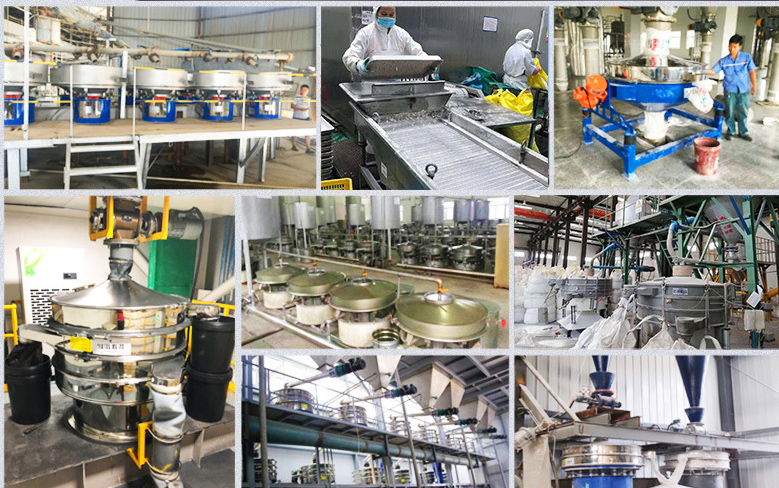

Application of milk powder sifter

Milk powder sifter can improve the physical structure between the powder particles, make the milk powder more fluffy, the milk powder quality is consistent, the fluidity is good, the volume increases, and the contact area with water and other materials increases. It can effectively shorten the mixing time and improve the homogeneity of the material. The dough has uniform gluten, moderate toughness, no shrinkage or deformation of the blank, and high yield. Vibration screening must reach a certain degree of fineness in order to effectively remove the impurities in the milk powder, effectively purify the raw materials, and ensure the smoothness of the process, thereby improving product quality and increasing economic benefits.

Material	Proportion	Mesh	Processing method	Capacity (kg/hr IT/hr)	Model
Milk powder	0.48	16	Dry	2000kg	DH-1000-2S
Skimmed milk powder	0.57-0.7	24	Dry	3000kg	DH-1200-1S
Whole milk powder	0.57-0.8	12	Dry	1600kg	DH-1000-1S
