Chili Powder Vibration Sieve

Introduction of chili powder vibration sieve

Chili powder vibration sieve can help remove sand, small rocks, seeds and dust particles in chili powder at the initial stage, and can also help check sieving by removing too large lumps and obtaining fine and smooth powder. The fine mesh of the required size can easily separate the lump or coarse powder and the fine powder to obtain smooth fine chili powder. Chili powder vibration sieve can be easily connected to any existing production line.

Chili powder vibration sieve can sieve different sizes of chili powder from 0.028mm-10mm, and a variety of mesh sizes can meet the requirements of chili powder with the same screening accuracy. The screening accuracy can reach 95% with a high screen passing rate, and it is also equipped with bounce. The ball cleaning device keeps hitting the screen during the screening process to achieve the purpose of cleaning the screen, which can effectively solve the problem that the screen blockage during the screening process affects the screening efficiency.

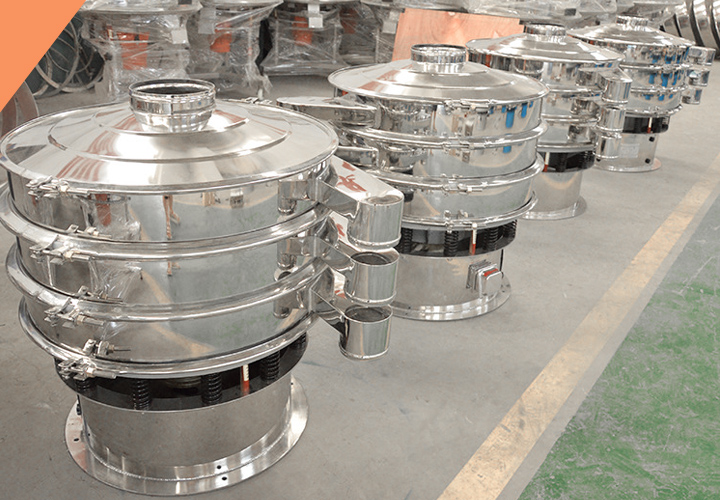

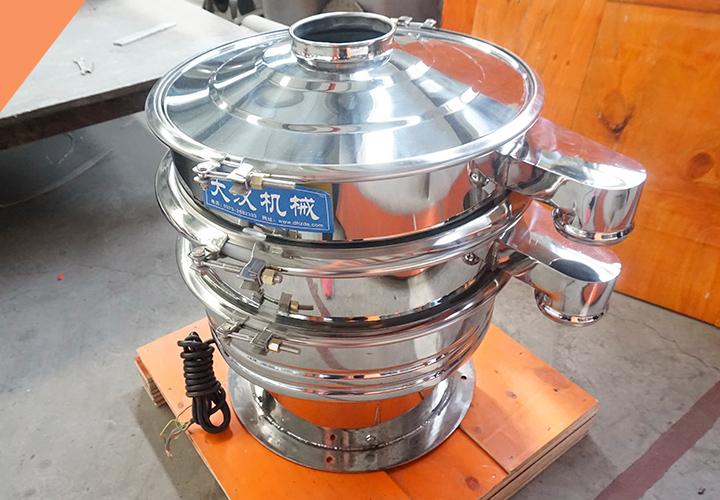

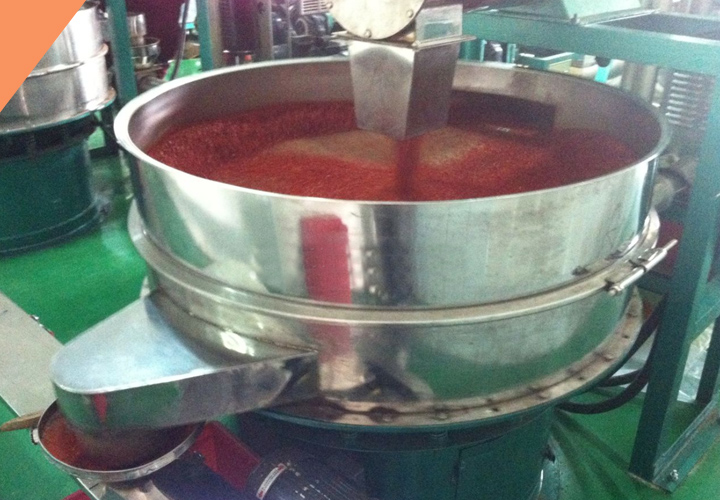

Chili powder is sieved using stainless steel

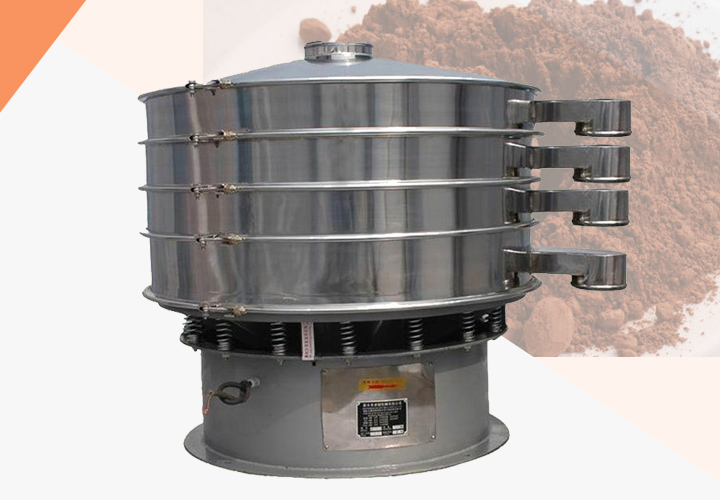

1 layer	lmpurity removal
2 layer	Grading 2 kinds of finished products of different specifications
3 floors	Grading 3 kinds of finished products of different specifications
4 floors	Grading 4 kinds of finished products of different specifications
5 floors	Grading 5 kinds of finished products of different specifications

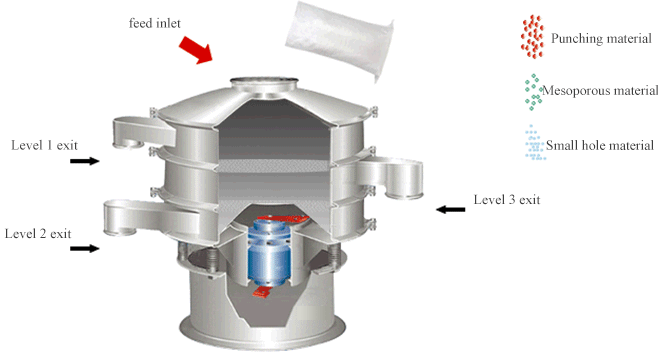

Working principle of chili powder vibration sieve

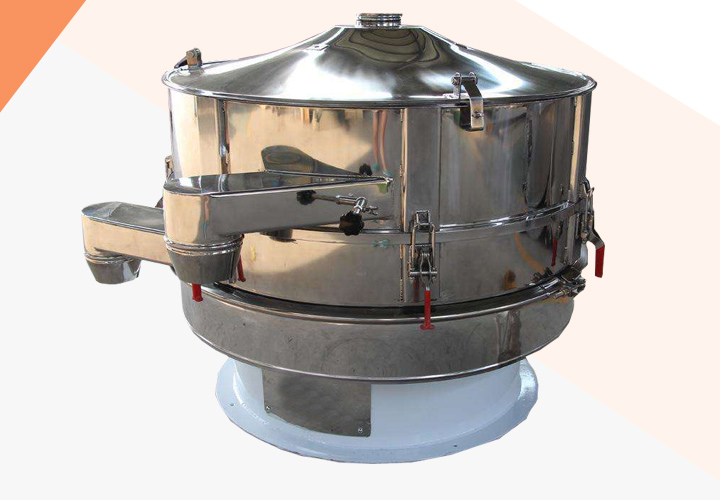

Chili powder vibration sieve uses the YZUL vertical vibration motor as the excitation source, and uses the eccentric weights at the upper and lower ends of the vibration motor to convert the rotary motion into a horizontal, vertical, and inclined three-dimensional motion, which is transmitted to the screen surface of the rotary vibrating screen; The material enters the equipment through the inlet. According to different material screening requirements, the material passes through the sieve of the sieve for layering. In this process, the bouncing ball, a cleaning device located under the sieve, continuously hits the sieve, causing the sieve to be layered. The material can be screened through the mesh smoothly and effectively solves the problem of material blockage. The over-screen material and under-screen material are discharged from different outlets, so as to achieve the purpose of screening and removing impurities or filtering and grading.

Featured videos

Separate chili seeds and chili powder

Benefits of chili powder vibration sieve

1. It can sieving chili noodles of different sizes from 0.028mm-10mm, and a variety of mesh sizes can meet the requirements of different sieving accuracy of chili noodles.

2. The screening accuracy can reach 95% with a high screen passing rate. At the same time, it is equipped with a bouncing ball cleaning device to keep hitting the screen during the screening process to prevent clogging.

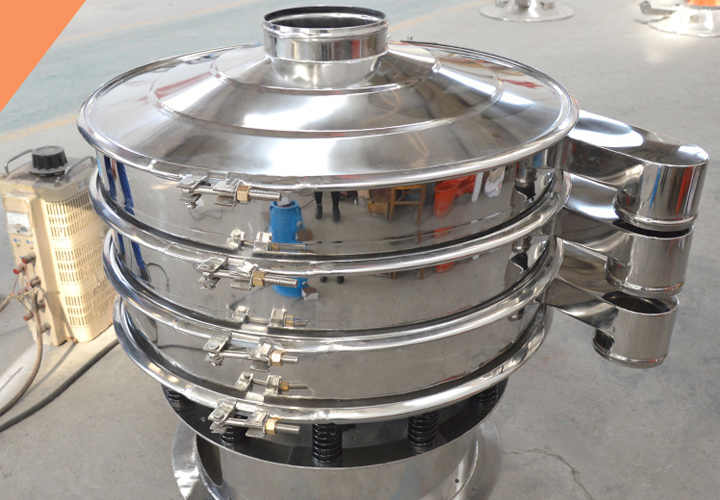

3. Made of 304 stainless steel, the surface of the machine is smooth after internal and external polishing, which meets the national standards for the food industry.

4. You can achieve 6 different gradation in a single operation as it can be structured up to 5 decks.

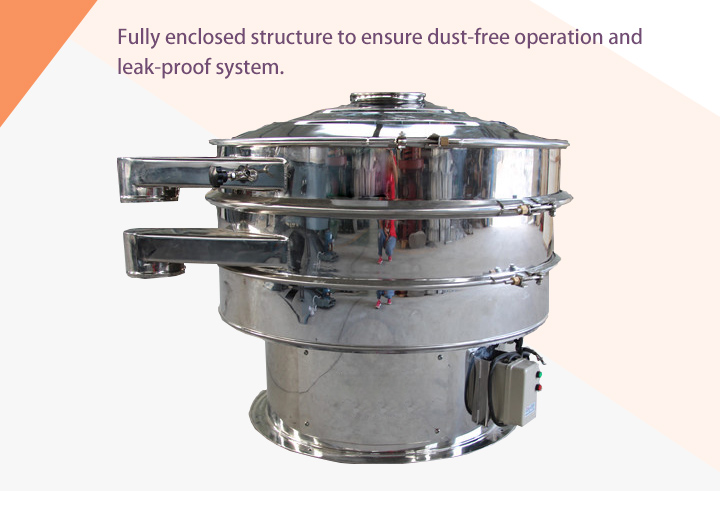

5. Fully enclosed structure to ensure dust-free operation and leak-proof system.

Technical parameters of chili powder vibration sieve

Model	Diameter (mm)	Feeding Size (mm)	Frequency (RPM)	Layers	Power (kw)	Capacity (kg/h）
DH-400	400	<10	<1500	1-5	0.18	100
DH-600	600				0.25	200
DH-800	800				0.55	500
DH-1000	1000				0.75	800
DH-1200	1200				1.1	1200
DH-1500	1500				1.5	1800
DH-1800	1800				2.2	2000

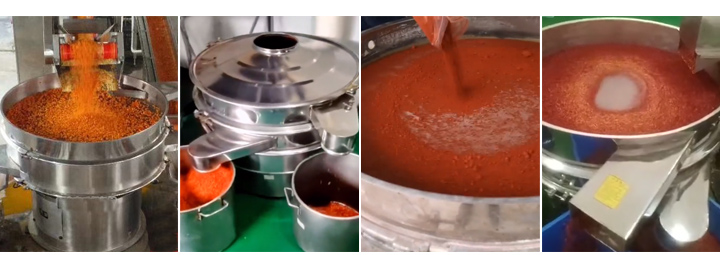

Application of chili powder vibration sieve

1. Removal of miscellaneous peppers by winnowing.

2. Crush and sieve to remove seeds. Use chili powder vibration sieve to pass a 4mm sieve to remove the pepper seeds. It is required that the skin contains less than 4% seeds and the seeds contain less than 4%. The pepper seeds are dried and sold.

3. Dry the pepper skins. Dry the pepper skins to about 10% moisture. Note that the temperature should not be too high, which will cause loss of color value.

4. Grind the powder in two times, with 1.5mm baskets for one pass, 60-mesh baskets for the second pass, with a pair of rollers.

5. Packaging, the packaging bag is lined with black inner film. Store in cold storage for sale.

Use Chili Powder Vibration Sieve Quality

With our powerful rotary separators, you can get high-quality, pollution-free paprika.

Manufacturers of paprika must maintain the highest quality standards because it is the food that consumers eat and any quality issues can have serious consequences.

The rotary vibrating screen integrates classification, impurity removal and filtration. There are 1-4 layers of screens for users to choose from. The screening mesh number is within 500 meshes, and the screening accuracy is high. It can screen 1-5 tons of materials per hour. The screening efficiency is fast; there are three materials of carbon steel, stainless steel and plastic for users to choose; the amount of materials that can be accommodated is large, powder, granules and liquids can be screened, the mesh is not easy to block, and the material is sealed when screening. To ensure that the dust does not fly, it can be automatically discharged.

Standards required by the food industry. We also manufacture stainless steel body machines on demand.

Range of solutions for chili powder

For each user, the manufacturer will provide assistance as soon as possible in terms of maintenance, repair and other doubtful issues. The manufacturer promises that the product can be returned within 30 days after purchase if it has its own quality problems, and there is a one-year quality guarantee. During this year, the repair and maintenance costs of all products do not need to be reimbursed by the user.
