Paint vibrating screen

Paint vibrating screen is a screening device specially designed for the paint industry, mainly used for screening paint. During the production process, the paint may contain impurities, agglomerated pigment particles or insufficiently mixed ingredients. The paint vibrating screen makes the paint move on the screen through vibration, thereby separating the paint that meets the particle size requirements from the impurities or large particles that do not meet the requirements, ensuring the quality and uniformity of the paint.

The role of Paint vibrating screen

1.Particle screening: Paint vibrating screen can screen the particles according to different particle sizes by vibration and separate the particles that meet the requirements.

2.Pigment dispersion: Paint vibrating screen can help effectively disperse the pigment particles, ensure that the pigment is evenly distributed in the paint, and improve the color uniformity of the paint.

3.Particle classification: Paint vibrating screen can also classify the particles according to the size, shape and other characteristics of the particles, and divide the particles into different grades to meet the needs of different paint products.

4.Remove impurities: In the process of paint production, some impurities or foreign matter are sometimes mixed in, affecting the quality of the paint. Paint vibrating screen can remove these impurities and improve the purity and quality of the paint.

Working principle of Paint vibrating screen

The paint vibrating screen generates high-frequency vibration through the exciter, causing the screen box to resonate, thereby driving the material on the screen to jump. Materials of different particle sizes are screened under the action of the screen, large particles remain on the screen, and small particles pass through the screen.

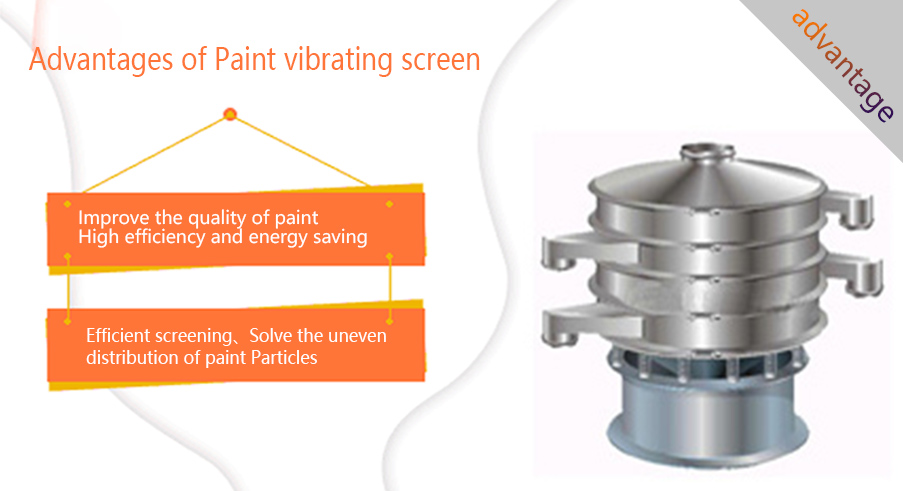

Advantages of Paint vibrating screen

1. Improve the quality of paint: Through screening, the composition of the paint can be made more uniform and the color more pure. This is particularly important for the production of high-quality paints, such as automotive paints, high-end architectural paints, etc., which can improve the hiding power, adhesion and other properties of the paint.

2. High efficiency and energy saving: The vibration device of Paint vibrating screen can quickly move the paint on the screen to achieve efficient screening. The screening speed is faster, and because the power of the vibration motor or exciter is relatively low, less energy is consumed during operation, and it has a higher energy efficiency ratio.

3. Efficient screening: The design of high-frequency vibration and multi-layer screen makes Paint vibrating screen have high screening efficiency and can quickly remove impurities.

4. Solve the uneven distribution of paint particles: Paint vibrating screen can improve the uniformity of particle distribution and ensure uniform screening of paint particles by optimizing the vibration frequency and amplitude, adjusting the screen structure, and controlling the screening speed.

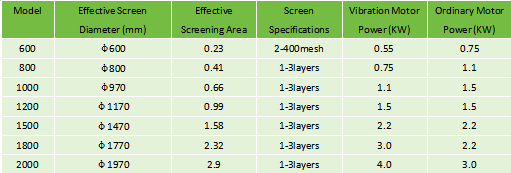

Models and parameters of Paint vibrating screen

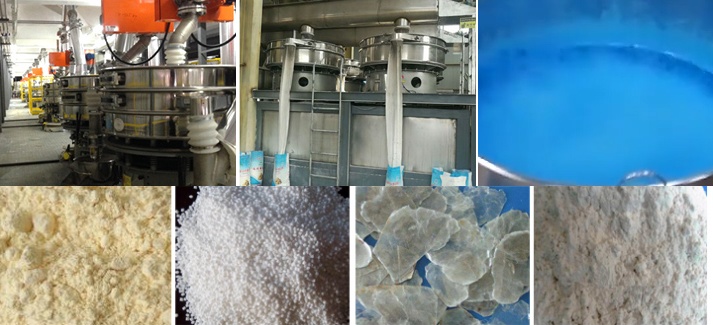

Application of Paint vibrating screen

1. Architectural paint: During the production process,  Paint vibrating screen can remove large particle impurities in the paint to ensure the uniformity and fineness of the paint.

2. Furniture paint: Furniture paint has high requirements for gloss and fineness. Paint vibrating screen can ensure that there are no impurities in the paint and improve the decorative effect of the paint.

3. Automobile paint: Automobile paint has extremely high requirements for quality and stability. TPaint vibrating screen can accurately screen the paint particles to ensure the uniformity and stability of the paint.

Paint vibrating screen plays an important role in the production of paint. Through screening, the quality of the paint can be improved and the performance of the coating film can be improved. When selecting and using it, comprehensive consideration should be given to the specific production needs and material characteristics.
