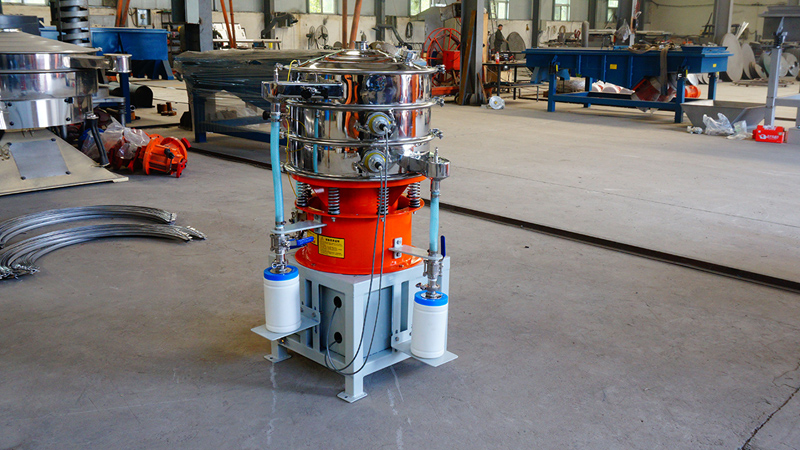

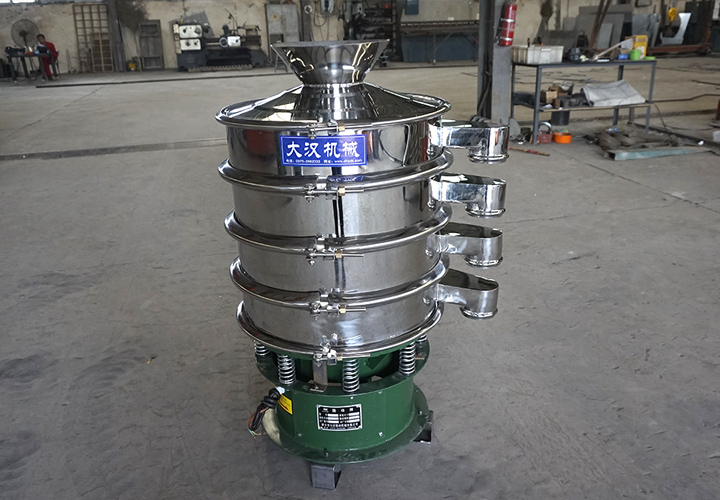

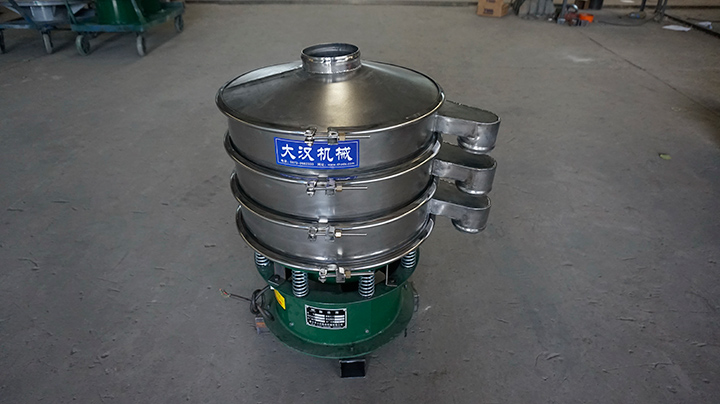

Titanium Alloy Vibrating Screen

Titanium alloy vibrating screen is specially used for the screening of various fine powders that are easy to adhere, have static electricity and are easy to agglomerate, such as silicon carbide powder, brown corundum powder, stainless steel powder, reduced iron powder, atomized iron powder, various alloys Powder, powder coating, quartz powder, electromagnetic powder, laser powder, aluminum powder, electrolytic copper powder, grinding powder, refractory material, luminous powder, glass microbeads, rubber additives, starch, API intermediates, etc. This equipment can be used for general materials that are well screened. Use WLC-1000-1S ultrasonic vibrating screen to sieve titanium alloy powder, and use 400 mesh screen to handle 600-800kg per hour.

Features of Titanium alloy vibrating screen:

1. The screen has a self-cleaning function, no need to add a love net device such as a bouncing ball

2. The screen is not blocked, the powder does not fly, and the environmental pollution is small

3. Change the characteristics of the screening material

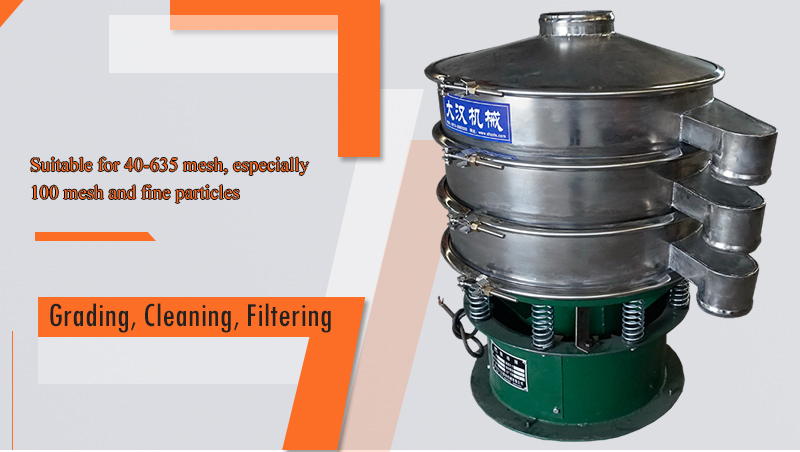

4. Suitable for 40-635 mesh, especially 100 mesh and fine particles

5. The sieving particle size is raised to 1-70%, and the output is increased by a maximum of 10 times.

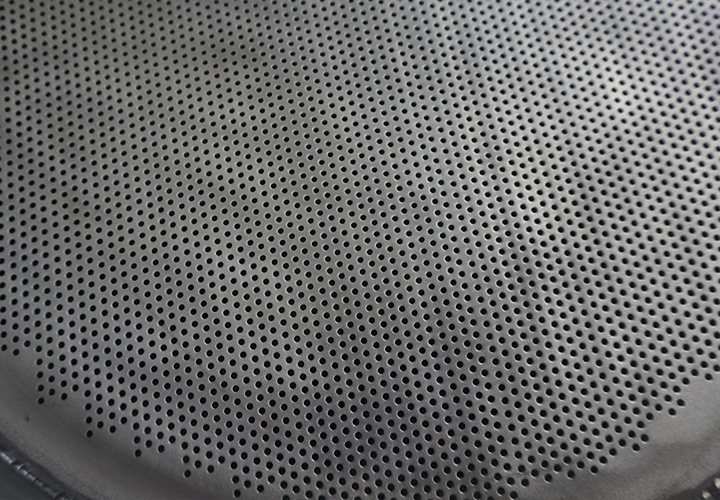

6. New grid structure, longer service life of the screen

7. The screening efficiency is high, and it can effectively solve the problem of easy clumping, high viscosity, static electricity and other fine particles.

Titanium alloy vibrating screen technical parameters:

Titanium alloy vibrating screen working principle:

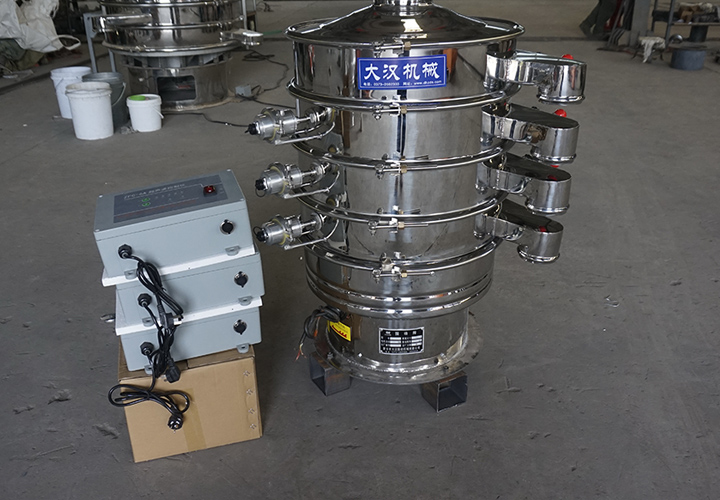

Titanium alloy vibrating screen, ultrasonic vibrating screen converts 220V, 50Hz electric energy into 18KHz high-frequency electric energy, converts it into 18KHz mechanical vibration wave through ultrasonic transducer, and transmits it to the screen surface evenly through the ultrasonic mesh frame, so that the screen surface The ultra-fine powder on the screen receives ultrasonic acceleration and is always in a suspended state, thereby inhibiting the blocking factors such as adhesion, friction, leveling, and wedging, and improving the screening efficiency and net cleaning efficiency. To achieve the purpose of high-efficiency screening and net cleaning, making the screening of ultra-fine powder an easy task. Especially suitable for users of high value-added fine powder.

Scope of application of Titanium alloy vibrating screen

Titanium alloy vibrating screen is specially used for screening all kinds of fine powders that are easy to adhere, have static electricity, and are easy to agglomerate, such as silicon carbide powder, brown corundum powder, stainless steel powder, various gold powders, powder coatings, quartz powder, electromagnetic powder Powder, laser powder, aluminum powder, electrolytic copper powder, grinding powder, refractory material, luminous powder, glass microbeads, rubber additives, starch, API intermediates and other general materials that are not easy to be screened by ordinary sieves can be used. equipment.
